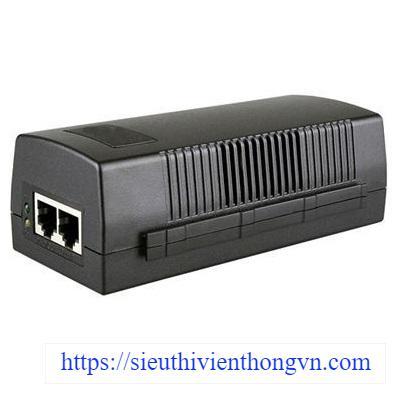

01-Port 10/100Mbps PoE injector NETONE NO-AF-N481
- 01-Port 10/100Mbps PoE injector.
- Nguồn điện: 48VDC/1A.
- Dùng cấp nguồn qua mạng cho các thiết bị như Camera IP, thiết bị Wifi…
- Công suất: 15,4 Watt.
- 2x 10/100Mbps RJ45 ports
- Compatible with IEEE802.3af standard
- Single port power: 15.4W
- Support network port, the power input port features lightning-proof (meet the secondary lightning protection)
- Support power supply through spare line pairs4/5 (+), 7/8 (-) or data line pairs1/2(+), 3/6(-)
- Supply power to millions HD webcam through Cat5 Ethernet cable
- No fans, natural cooling, small and exquisite, no noise design, suitable for desktop or wall
Specifications
Product Name | Single Port 100M PoE Injector |
Model | NO-AF-N481 |
Connector Type | 10/100M copper cable RJ45 PoE port |
Network Media | 1000BASE-TX: 5Cat and more UTP (≤100 meters) |
LED Display | PoE working status |
Power output | output voltage: DC48V1A |
PoE Ports | Single port support PoE |
PoE Port Power | 15.4W per PoE port |
PoE Standard | IEEE 802.3af |
Working Environment | Operating Temperature: 0°～ 55°C , Storage Temperature: -20°～ 75°C;Working Humidity: 10%～90%, non-condensing; Storage Humidity: 10%～95%, non-condensing |
Certification | CE mark,commercial,FCC Part 15 Class B，RoHS |
Transmission Distance | ≤100 meters |
Power Supply Type | mid-span: 4/5, 7/8 data line pair(default); end-span: 1/2,3/6 spare line pair (can be customized) |
Product Size | 118x60x38(mm) |
- Sản xuất tại Taiwan.
- Bảo hành: 12 tháng.
