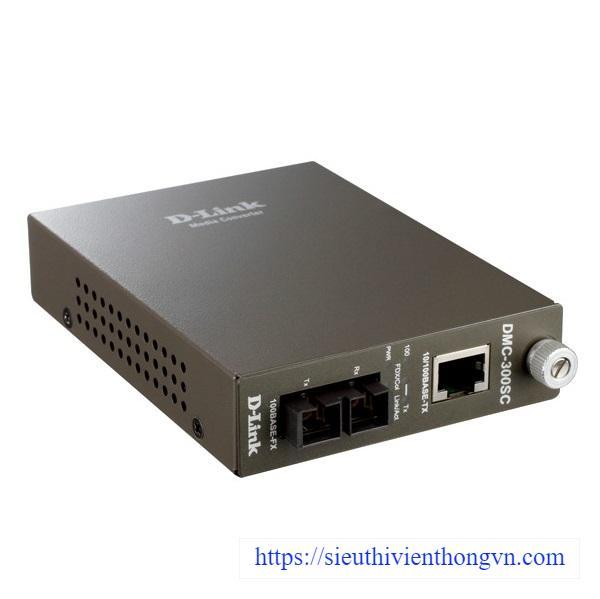

10/100Base-TX (UTP) to 100Base-FX (SC) Multi-mode Media Converter D-Link DMC-300SC/E
-10/100Base-TX (UTP) to 100Base-FX (SC) Multi-mode 2km Fiber Media Converter (Usable in DMC-1000 Chassis).
-The DMC-300SC/E by D-Link® is a media converter designed to connect 10BASE-T/100BASE-TX copper to 100Base-FX fiber media and vice versa. Based on the IEEE 802.3 and 802.3u standards, the DMC-300SC/E is designed for use with multimode fiber cable utilising the SC-Type connector.
-The DMC-300SC/E supports shortwave (SX) laser specifications at a full wire-speed forwarding rate. Other features of this module include the ability to be used as a standalone device (no chassis required), Auto MDI/MDI-X, Auto negotiation of speeds and duplex modes on twisted-pair port, and front panel status LEDs.
-The DMC-300SC/E will transmit at extended fiber optic distances utilising multimode fiber up to 2 kilometers.
Technical Specifications
| LED Indicators | Power |
| 100Mbps Speed (for twisted-pair port) | |
| Full Duplex/Collision (for twisted-pair and fiber ports) | |
| LINK/ACT (for twisted-pair port) | |
| Operation Temperature | 0° - 40° C |
| Storage Temperature | -25° - 70° C |
| Humidity | 10 ~ 90% non-condensing |
| Emission (EMI) | VCCI Class B |
| CE Class B | |
| C-Tick | |
| Power Input | 7.5V 1.5A |
| Through external AC power adapter | |
| Dimensions | 120 x 88 x 25 mm |
-Bảo hành: 36 tháng.
