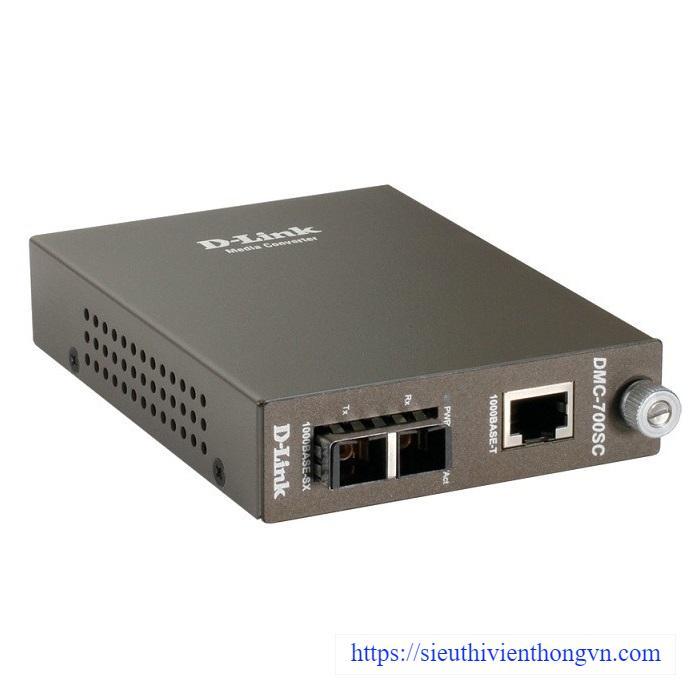

1000Base-TX (UTP) to 1000Base-SX (SC) Multi-mode Media Converter D-Link DMC-700SC/E
- 1000Base-TX (UTP) to 1000Base-SX (SC) Multi-mode 550m Fiber Media Converter (Usable in DMC-1000 Chassis).
- The DMC-700SC by D-Link® is a media converter designed to connect 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Based on the IEEE 802.3ab and 802.3z standards, the DMC-700SC is designed for use with multi-mode fiber cable utilising the SC-Type connector. The DMC-700SC supports shortwave (SX) laser specifications at a full wire-speed forwarding rate. Other features of this module include the ability to be used as a standalone device (no chassis required), Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port, and front panel status LEDs. The DMC-700SC will transmit at extended fiber optic distances utilising multimode fiber up to 550 meters.
Specifications
| Model | DMC-700SC/E |
| Cabling Type | Ethernet 1000Base-SX, Ethernet 1000Base-T |
| Type | Fiber media converter |
| Datalink Protocol | Gigabit Ethernet |
| Data Transfer Rate | 1000 Mbps |
| LED Indicators | Power (PWR) |
| LINK/ACT | |
| Power Input | 7.5V 1.5A |
| Through external AC power adapter | |
| Dimensions | 120 x 88 x 25 mm |
| Operating Temperature | 0° - 40°C |
| Storage Temperature | -25° - 70°C |
| Humidity | 10 ~ 90% non-condensing |
- Bảo hành 12 tháng.
