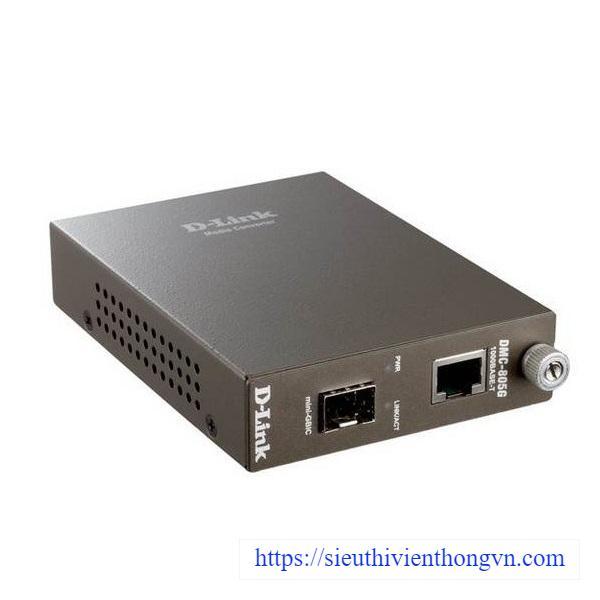

1000Base-TX (UTP) to GBIC Media Converter D-Link DMC-805G/E
- This converter converts 1000BASE-T twisted-pair signals to 1000BASE-SX/LX multi-mode/single-mode fiber signals. Maximum fiber cable distance is 550 m for 1000BASE-SX and 20 km for 1000BASE-LX. 1 RJ-45 twisted-pair port and 1 SFP port (mini GBIC) are provided.
Specifications
| Model | DMC-805G/E |
| Cable Support | 1000BASE-T: Cat. 5 UTP, EIA/TIA-568 100-ohm screened twisted-pair (STP), up to 100m 1000BASE-SX: 62.5/125-micron multi-mode fiber cable, up to 220m; 50/125-micron multi-mode fiber cable, up to 550m 1000BASE-LX: 9/125-micron single-mode fiber optic cable, up to 20km |
| Connectors | RJ-45 |
| LC (to SFP transceiver) | |
| Wavelength | Depends on SFP Module |
| LED Indicators | Power |
| Link/Act | |
| Power Input | 7.5V 1.5A |
| Through external power adapter | |
| Power Consumption | <5.5W |
| Dimensions | 120 x 88 x 25 mm |
| Weight | 305g |
| Operation Temperature | 0° - 40°C |
- Bảo hành 12 tháng.
