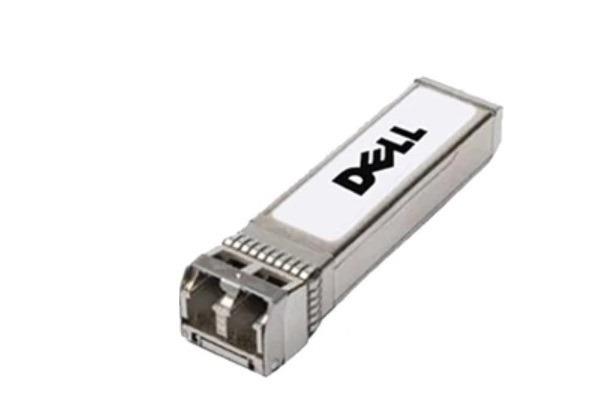

1000Base-SX Ethernet SFP Transceiver DELL 42DEN407-BBOR
- The Dell SFP networking transceiver delivers fiber connectivity to extend the range of your network. This hot-pluggable networking transceiver with SFP (Small Form Factor Pluggable) footprint features a duplex LC connector. The Dell networking 1000BASE-SX SFP networking transceiver provides 1GbE connectivity up to 550m.
- Additionally, it provides a unique enhanced digital diagnostic monitoring interface, which allows real-time access to device operating parameters such as networking transceiver temperature, laser bias current, transmitted optical power, received optical power, and networking transceiver supply voltage.
Đặc tính kỹ thuật
| General | |
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-SX |
| Data Link Protocol | GigE |
| Data Transfer Rate | 1 Gbps |
| Optical Wave Length | 850 nm |
| Max Transfer Distance | 1800 ft |
| Expansion/Connectivity | |
| Interfaces | 1 x Ethernet 1000Base-SX |
| Compatibility Information | |
| Designed For | Force10; Force10 ExaScale E-Series; Networking C1048, C7004, C7008, C9010, N2024, N2048, N3024, N3048, N4032, N4064, S3048, S4810, S5000, S6000, S6010, X1008, X1018, X4012; PowerConnect 55XX, 62XX, 70XX, 8024, M8024; PowerEdge FX2, VRTX, VRTX M520, VRTX M620; Networking N3132, S4048, X1026, X1052 |
