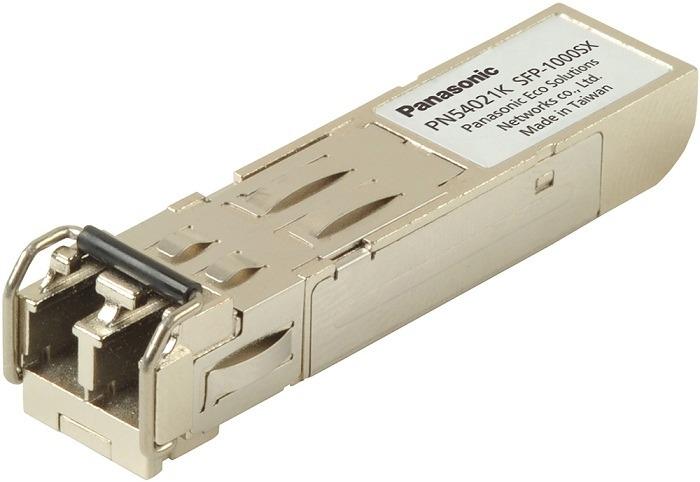

1000BASE-SX SFP Module PANASONIC PN54021K
Specification
| Model | PN54021K | |
| Applicable cable | Multimode fiber cable (50/125 μm) (62.5/125 μm) | |
| Maximum transmission distance | 550m (MMF 50/125 μm, mode bandwidth 500MHz/ km) | |
| 500m (MMF 50/125μm, mode bandwidth 400 MHz/ km) | ||
| 275m (MMF 62.5/125 μm, mode bandwidth 200 MHz/km) | ||
| 220m (MMF 62.5/125 μm, mode bandwidth 160 MHz/km) | ||
| Optical transceiver | Light wavelength | 850 nm |
| Light receiving sensitivity | -18 dBm | |
| Optical fiber output | -9.5 ~ -4.0 dBm | |
| Power consumption | 0.7W | |
| Operating temperature | 0 ~ 50°C | |
| Operating Humidity | 20 to 80% RH (without condensation) | |
| External dimensions | 9 x 15 x 57 mm | |
| Mass | 17g | |
- Bảo hành: 12 tháng.
