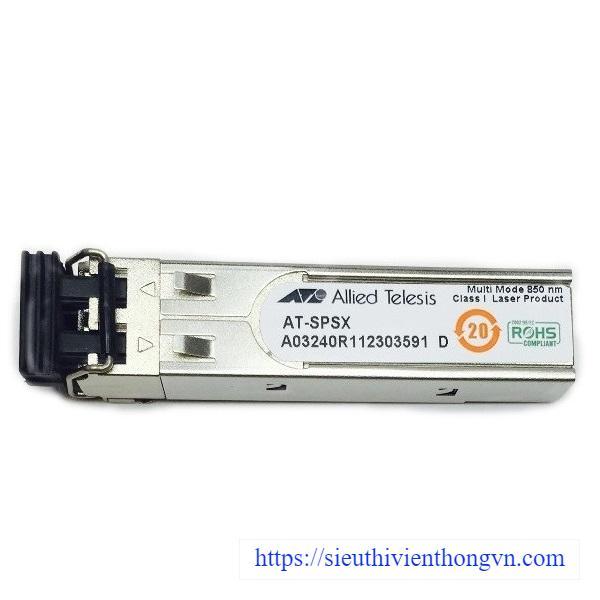

1000SX Multi-Mode SFP Module ALLIED TELESIS AT-SPSX
- Copper and fiber Solutions.
- Connect up to 80km.
- Compact size.
- Flexible architecture.
- Plug & Play ease-of-use.
- Self-locking mechanism.
- Colored wavelength for CWDM use.
- Data: Support for fiber channel and 2x fiber channel.
- Telecom: support for OC3/STM-1, OC12/STM-4, and OC48/STM-16.
Đặc tính kỹ thuật
| Model | AT-SPSX |
| Fiber type | Multi Mode |
| Connector type | LC |
| Maximum distance | 500 m |
| Wavelength | 850 nm |
| Maximum Data Rate | 2.125 Gbps |
| Transmit | -9 ~ -3.5 dBm |
| Receive sensitivity | -22 dBm |
| Power budget | 11dBm |
| Overload | -3 dBm. |
| Operating temperature | -20°C to 90°C |
| Operating Humidity | 0% to 85% (non-condensing) |
| Storage Temperature | -40°C to 100°C |
| Storage Humidity | 0% to 80% (non-condensing) |
- Bảo hành: 12 tháng.
