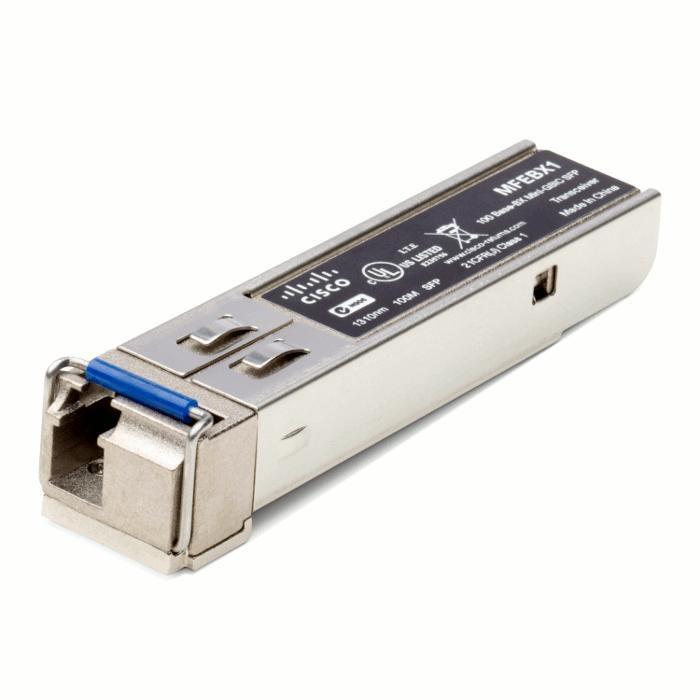

100Base-BX Mini-GBIC SFP Transceiver Cisco MFEBX1
- 100BASE-BX-20U SFP transceiver for single-mode fiber, 1310 nm wavelength, support up to 20 km
Features
- Built-in spring latch for easy module removal
- Hot swappable
- Low insertion-loss duplex LC receptacle
- Low electromagnetic interference (FCC Part 15, Class B) for clear communications
- Meets FDA and International Electrotechnical Commission (IEC) eye safety standards
Specifications | |
Media | Single-mode fiber (SMF) |
Application | 100BASE-BX-20U |
Connector type | Single LC |
Wavelength typical (Tx) | 1310 nm |
Wavelength range (Rx) | 1550 nm |
Performance | |
Maximum distance | up to 20 km |
Average output power | -20 dBm to -14 dBm |
Receiver sensitivity | -32 dBm (max) |
Receiver overload | MFEBX1:-8 dBm (min) |
Environmental | |
Dimensions W x H x D | 13 x 9 x 56 mm (0.53 x 0.33 x 2.19 in.) |
Unit weight | 0.018 kg (0.63 oz. ) |
Power | 1W (max) |
Operating temperature | 32º to 158ºF (0º to 70ºC) |
Storage temperature | -40º to 185ºF (-40º to 85ºC) |
Operating humidity | 10% to 85% noncondensing |
Storage humidity | 5% to 90% noncondensing |
Standards | |
Compliance | FCC Part 15 Class B |
EN55022 Class B (CISPR 22B) | |
VCCI Class B | |
Safety | FDA 21 CFR 1040.10 and 1040.11 |
EN60950, EN (IEC) 60825-1,2 | |
- Bảo hành: 12 tháng.
