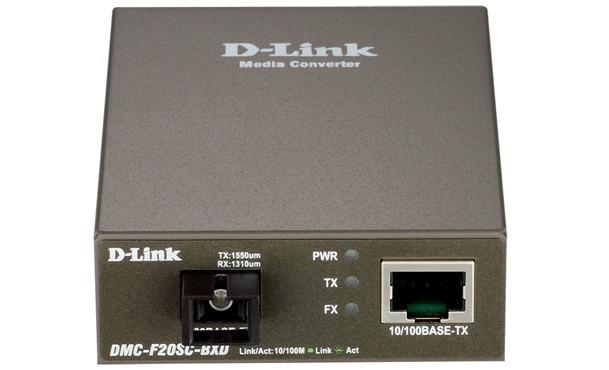

100Base-TX to 100Base-FX (LC) Single-mode Media Converter D-Link DMC-F20SC-BXD/E
- 100Base-TX to 100Base-FX (LC) Single-mode Media Converter (TX1550nm, RX1310nm, 20km) (Stand-Alone).
- Media converters DMC-F20SC-BXD and DMC-F20SC-BXU perform conversion of interfaces 'twisted pair - a single mode optical fiber cable according to one' for the Ethernet 10/ 100BASE-TX and 100BASE-FX networks. Devices can simultaneously transmit and receive signals at wavelengths between 1310 nm and 1550 nm in a single optical fiber at a distance of 20 km.
Specifications
| Model | DMC-F20SC-BXD/E |
| Interfaces | Port 10 / 100BASE-TX |
| Port 100BASE-FX single-fiber FX (SC connector) | |
| Standards | IEEE 802.3 10BASE-T |
| IEEE 802.3u 100BASE-TX, 100BASE-FX | |
| Wavelength | TX: 1550nm, RX: 1310 nm, 20 km |
| Output optical power (TX) | Max: -3 dBm |
| Min: -12 dBm | |
| The input optical power (RX) | Max: 0 dBm |
| Min: -32 dBm | |
| Sensitivity | -32 dBm |
| Transmission speed | 148,800 pps max. |
| Indicators | Power, Link/ Act/ Speed |
| The maximum packet size | 1600 bytes |
| External Power Adapter | 5V/1A, external power adapter |
| Power consumption | 2.17W |
| Dimensions | 70 x 95 x 25 mm |
| Operation Temperature | 0° to 50°C |
- Bảo hành 12 tháng.
