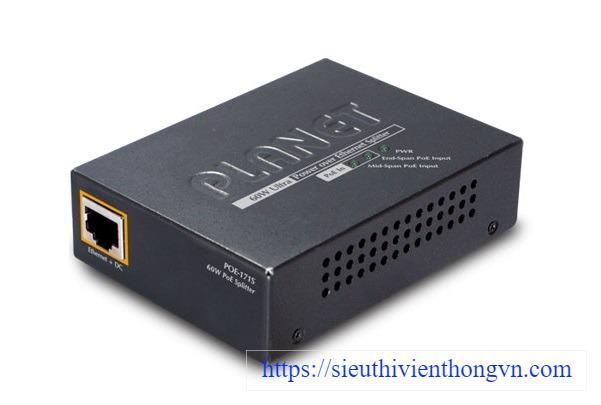

10/100/1000Mbps Ultra POE Spliter PLANET POE-171S
Interface
- 2-Port RJ-45 interfaces
o 1-Port Data + Power input
o 1-Port Data output
- 1-Port DC output power socket
- 1 DC 12V/19V/24V DIP switch
Power over Ethernet
- Ultra Power over Ethernet End-Span / Mid-Span PSE
- IEEE 802.3at/af PoE standard compliant
- Compatible with All IEEE 802.3at/af Powered Devices
- Supports 56VDC, 50 watt PoE power output
- Splits the 56V DC power over RJ-45 Ethernet cable into DC 12V/19V/24V output
- Remote power feeding up to 100 meters
Hardware
- Metal case
- All-in-one compact size design
- LED indicators for Power LED and POE input
- Three-mode DC output DIP switch for 12V/19V/24V
Specifications
| Model | POE-171S |
| Hardware | |
| Interface | 2-Port RJ-45 interfaces 1-Port DC output power socket 1 DC 12V/19V/24V DIP switch |
| LED Indicator | System: Power x 1 (Green) |
| Network Cable | Ultra PoE (60W): 10/100/1000Base-T: 4-Pair UTP Cat. 5e, 6 up to 100m 802.3af /at PoE(15W / 30W): 2-Pair UTP Cat. 3, 5, 5e, 6 up to 100m |
| Data Rate | 10/100/1000Mbps |
| Dimensions (W x D x H) | 95 x 70 x 26 mm |
| Weight | 300g |
| Unit Output Voltage | 52 ~ 56V DC |
| Power Consumption | 50W max. |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3at Power over Ethernet Plus |
| PoE Power Supply Type | End-Span + Mid-Span |
| PoE Power Output | DC 12V/19V/24V by DIP switch control |
| Environment | |
| Operating Temperature | 0 ~ 50°C |
| Storage Temperature | -10 ~ 70°C |
| Operating Humidity | 5 ~ 95%, Relative Humidity, non-condensing |
- Bảo hành: 12 tháng.
