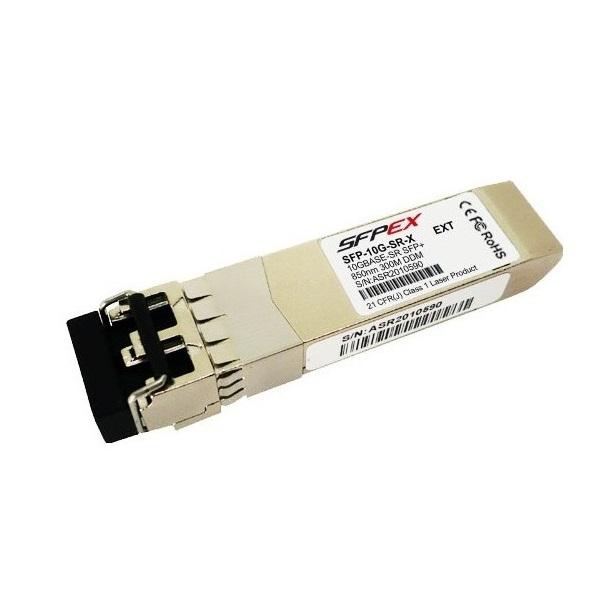

10G BASE-SR SFP Cisco SFP-10G-SR-X
- 10GBASE-SR SFP Module for Extended Temp range.
- The Cisco SFP-10G-SR-X is a multirate 10GBASE-SR, 10GBASE-SW and OTU2/OTU2e module for extended operating temperature range.
- Supports a link length of 26m on standard Fiber Distributed Data Interface (FDDI)- grade multimode fiber (MMF).
- Using 2000MHz*km MMF (OM3), up to 300m link lengths are possible. Using 4700MHz*km MMF (OM4), up to 400m link lengths are possible.
Specification
| Device Type | Plug-in module |
| Form Factor | SFP+ |
| Date Rate | 10.3Gbps |
| Wavelength | 850nm |
| Power Budget | 4.3dB |
| Max Reach Distance | 300m |
| Transmit Power | -7.3~-1.2dBm |
| Receive Sensitivity | -11.1dBm |
| Voltage | 3.3V |
| Power Consumption | 1W |
| Connector | Dual LC |
| Fiber Type | MMF |
| Operation Temperature | -5 to 85 °C |
| Application | 10 Gigabit Ethernet |
| Certifications | CE, FCC, TUV, UL, RoHS, ISO9000:2001 |
- Bảo hành: 12 tháng.
