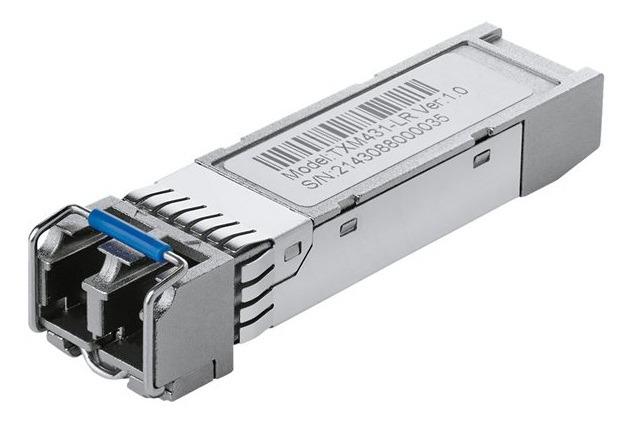

10GBase-SR SFP+ LC Transceiver TP-LINK TXM431-LR
- Single-mode SFP+ LC Transceiver.
- Hot-Pluggable with maximum flexibility.
- Compatible with multiple TP-LINK switch models/SFP+ modules.
- 310nm single-mode transceiver.
- 10km max distance.
- Support full duplex.
- LC/UPC Connector.
- 10Gbps Ethernet connectivity.
- SFP+ form factor.
- Hot pluggable.
Specifications
Standards and Protocols | IEEE 802.3ae, CSMA/CD, TCP/IP |
Wave Length | 1310nm |
Power Supply | 3.3V |
Fiber Type | 9/125um Single-mode |
Max. Cable Length | 10km |
Data Rate | 10Gbps |
Port Type | LC/UPC |
Transmission power | 0.5 dBm(Max) |
-8.2dBm(Min) | |
Reception power | 0.5dBm(Max) |
-14.4dBm(Min) | |
Sensitivity | -12.6dBm |
Safety & Emission | FCC, CE |
Environment | Operating Temperature: 0ºC ~70ºC (32ºF ~ 158ºF) |
Storage Temperature: -40ºC ~ 80ºC (-40ºF ~ 176ºF) | |
Operating Humidity: 10% ~ 90% non-condensing | |
Storage Humidity: 5% ~ 90% non-condensing |
- Hàng chính hãng TP-LINK.
- Bảo hành: 12 tháng.
