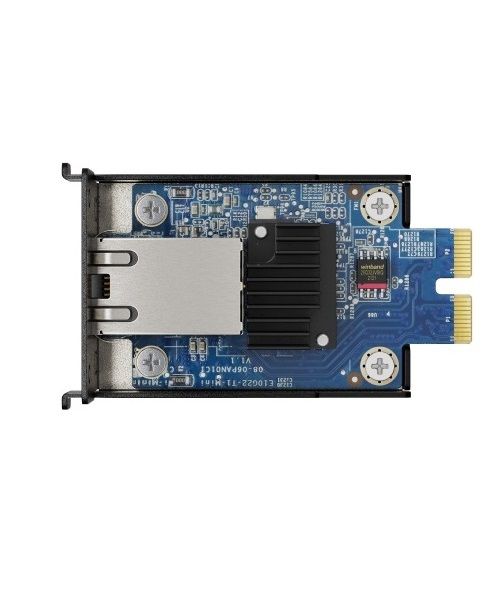

10GbE Network Upgrade Module SYNOLOGY E10G22-T1-Mini

10GbE Network Upgrade Module SYNOLOGY E10G22-T1-Mini

  • MS 0017040
  • SYNOLOGY
Giá : Liên hệ

10GbE Network Upgrade Module SYNOLOGY E10G22-T1-Mini

10GbE Network Upgrade Module SYNOLOGY E10G22-T1-Mini

- The Synology E10G22-T1-Mini Network Upgrade Module adds 10GbE RJ-45 connectivity to compatible Synology systems, enabling small businesses and home users to maximize the performance potential of their deployments with high-performance network throughput.

- High Bandwidth: Expands system capabilities with 10GbE connectivity to support higher resolution video editing, concurrent backup ingestion, and more.

- Flexible Integration: Supports 10/5/2.5/1GbE connections to work with nearly any RJ-45 network environment.

- For Synology by Synology: Designed for maximum performance and reliability in Synology systems.

Đặc tính kỹ thuật

Hardware
Expansion slotSynology Network Upgrade Slot
Size (HxWxD)26.37 x 45.38 x 75.7 mm
LAN ports1 x 10GbE RJ-45
Operating environment• Temperature: 0°C to 40°C (32°F to 104°F)
• Relative humidity: 8% to 80% RH
Storage environment• Temperature: -20°C to 60°C (-5°F to 140°F)
• Relative humidity: 5% to 95% RH
Network
IEEE specification compliance• IEEE 802.3an 10GBASE-T 10 Gbps Ethernet
• IEEE 802.3bz NBASE-T 2.5/5 Gbps Ethernet
• IEEE 802.3ab 1000BASE-T 1 Gbps Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE 802.3x Flow Control
ConnectorRJ-45 copper
Data transfer rates10/5/2.5/1 Gbps/100 Mbps
Network operation modeFull Duplex
Supported features• Support for 9 KB jumbo frames
• TCP/UDP/IP checksum offloading
• Auto-negotiation between 10/5/2.5/1 Gbps and 100 Mbps
• Large Send Offload (LSO)
• Receive Side Scaling (RSS)
• Generic Receive Offload (GRO)
• Generic Segmentation Offload (GSO)
• TCP Segmentation Offload (TSO)

- Bảo hành: 60 tháng.
