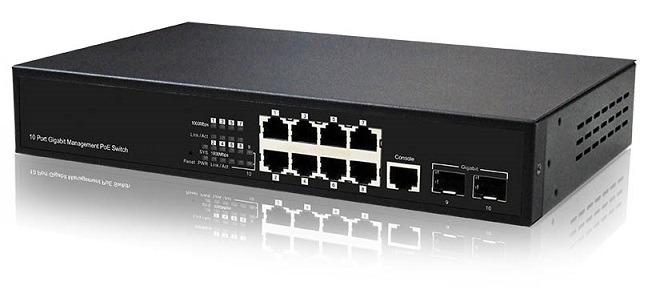

10-Port 10/100/1000Mbps PoE Switch IONNET IGS-1008 (130Watt)
– Bao gồm 10-Port PoE, công suất 130 Watt
– 10 ports Gigabit 10/100/1000 Mbps Switch with 8 ports IEEE802.3af/ 802.3at (PoE+) + 2 Giga SFP + 1 port RJ45 (console)
– Max 30 watt per port
– Metal case, Rackmount Design 1U
– Web Management
OverView
IGS-1008(130) series are high performance and cost efficiency PoE Smart Switch. It comes with 8 dedicated 10/100/1000Mbps copper ports and 2 Gigabit Fiber ports. IGS-1008 (130) offers useful PoE management features to control and monitor your PD devices (Wireless AP, IP Phone, IP Camera ...etc.). It also provides a comprehensive set of switch functions that makes you easy to deployment reliability and ensuring performance business networks.
Features
– Providing 8 ports of 10/100/1000Mbps TX switching port and 2 Giga Fiber SFP Slot.
– Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX/LX
– Complying with 802.3x Flow Control and 802.3az Green Ethernet
– 8 Ports PSE/ PoE function, complying with IEEE-802.3at / IEEE802.3af
– Supporting the power up to Max 15.4Watt/ 30Watt for each PSE/PoE port
– Supporting the flow control: back pressure for Half-duplex and IEEE 802.3x for Full-duplex mode
– All ports support Auto-MDIX function
– Broadcast storm control and supporting store & forward operation
– Non-blocking & Non-head-of-line blocking full-wire speed forwarding
– Auto-learning networking configurations
– Built-in 8K MAC learning table, 4M bit buffer memory
– Filtering/Forwarding Rate: 1000Mbps/ 1488,000pps 100Mbps/ 148,800pps; 10Mbps/ 14,880pps
– Supports packet length 1522 bytes/ Maximum 1536 bytes and Jumbo frames: 9.6K
– Status LEDs: System Power, Link/Activity and PoE/PSE on line
– Network Transmission Media: 10Base-T Cat. 3, 4, 5 UTP/STP; 100Base-TX Cat.
– 5 UTP/ STP, 1000BASE-T Cat. 5E UTP/STP.
– Operating Temperature: 0°C ~ 40°C
– Storing Temperature: -20°C ~ 90°C
– Humidity: 10% ~90% RH (Non-condensing)
– Dimension (L x W x H): 263 x 160 x 44 mm (1U high)
– Power Consumption: 10Watt
– Maximum Supply PoE Power per device: 130Watt
– Weight: 1.45 kg
– Safety & EMI Certificates: CE & FCC
– Smart plug & play
Specification
Standards | IEEE 802.3 10BaseT |
IEEE 802.3u 100BaseTX | |
IEEE802.3ab 1000BaseT | |
IEEE802.3af PoE | |
IEEE802.3at PoE+ | |
Features | Number of Ports: |
8 10/100/1000BaseT with RJ-45 Connector with 2 port SFP, 1 port RJ45 ( console 1152008N1) | |
8 PSE ports with RJ-45 connectors | |
Data Transfer Rate | Ethernet: 10Mbps/Half-Duplex, 20Mbps/Full-Duplex Fast Ethernet: 100Mbps/ Half-Duplex, 200Mbps/ Full-Duplex Gigabit: 2000Mbps/ Full-Duplex |
Transmission Media | 10BaseT Cat. 3, 4, 5 UTP/STP, up to 100 m |
100BaseTX Cat. 5 UTP/STP, up to 100 m | |
1000Base T cat 5,6 UTP, up to 100m | |
Led Indicators | Per Port: (TX): 10/100/1000M Link/Act, PoE Per Unit: Power |
Maximum Supply PoE per Device | 130Watt (as table 1) |
Power Consumption | 10Watt |
Dimensions | 263x160x44 mm ( L x W x H ) |
Weight | 1.45 kg |
Humidity | 10 to 90% RH (non-condensing) |
Certifications | FCC Class A, CE |
– Sản xuất tại Taiwan
– Bảo hành: 12 tháng
