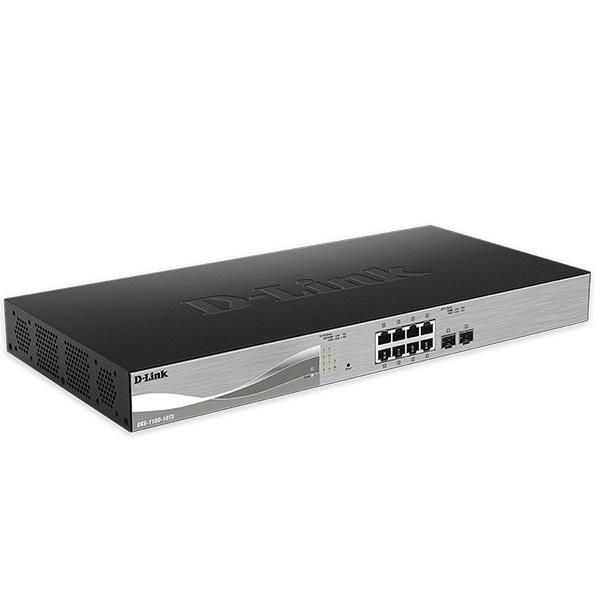

10-port Gigabit Ethernet Easy Smart Managed Switch D-Link DXS-1100-10TS

-8-port UTP 10GBASE-T, 2-port 10G SFP+ (EU 2 round pin+ UK 3-pin Power Cord, H/W: A1, Rackmountable).

-The DXS-1100-10TS 10 Gigabit Ethernet Smart Managed Switch is a Layer 2 10GBASE-T switch which provides an entry-level solution for Small and Medium Businesses (SMB) wishing to deploy 10 Gb Ethernet.

-It is ideal for use as a network aggregation device, or in server farms, or even for specialized 10-Gigabit to the desktop applications.

-It provides a cost-effective but feature-rich solution to 10 Gb Ethernet requirements for business networks of all sizes.

-The DXS-1100-10TS switch includes eight (8) 10GBASE-T copper ports which utilize RJ45 interfaces and support 10 Gigabit speeds over CAT6a/CAT7 LAN cabling up to 100m in distance.

-These ports are backward compatible with 1000BASE-T, so they can also connect to any Gigabit device.

-The switch additionally includes two (2) 10GbE fiber ports (SFP+) which can be connected to other 10GbE ports with low cost Direct Attach Copper (DAC) cables, or with SFP+ optical transceivers over multimode or singlemode fiber optic cabling.

-These ports are also backward compatible with 1 GbE SFP transceivers.

Energy Saving

-The DXS-1100-10TS incorporates D-Link Green technology for increased energy efficiency.

-Smart fans and temperature sensors ensure that the fans are running at the optimum speed to cool the system.

-If the environment temperature is suitable and the switch is at low utilization, the smart fans reduce their speed, resulting in lower power consumption and noise output.

-The Link Status feature reduces power utilization by powering-down inactive ports and putting them into sleep mode.

-The DXS-1100-10TS also takes its Green credentials one step further by incorporating a chipset with advanced silicon technology for reduced power utilization.

Easy to Deployment

-The DXS-1100-10TS supports an intuitive client-based utility (D-Link Network Assistant Utility) and a web-based management interface.

-The client-based utility allows customers to discover all switches in the D-Link Smart Switch family within the same L2 network segment.

-With this utility, users do not need to change the IP address of their PC, and this also makes initial setup of the Smart Switches quick and easy.

-Switches within the same L2 network segment that are connected to the user’s PC are displayed on-screen for instant access.

-This allows for extensive switch configuration and basic setup of discovered devices, including password changes and firmware upgrades.

-The graphic web-based management interface provides a user-friendly interface that enables network administrators to remotely control their network down to the port level.

Auto Surveillance VLAN and Bandwidth Control

-The DXS-1100-10TS supports Auto Surveillance VLAN (ASV), and Auto Voice VLAN, which are best suited for video surveillance and Voice over IP (VoIP) deployments, respectively.

-Auto Surveillance VLAN is a feature that automatically places video traffic from IP cameras to an assigned VLAN to enhance the IP surveillance service.

-With a higher priority and individual VLAN, the quality and the security of surveillance traffic are guaranteed.

-The Auto Surveillance VLAN function will check the source MAC address on the incoming packets.

-If it matches specified MAC address, the packets will pass through switch with desired priority.

-In a similar fashion, the Auto Voice VLAN technology enhances VoIP functionality by automatically placing voice traffic from an IP phone into an assigned VLAN.

-In addition, Bandwidth Control can reserve bandwidth on a per port basis for important functions that require larger bandwidth or might have high priority.

Advanced Security Features

-The DXS-1100-10TS is equipped with advanced security features such as Static MAC, Storm Control, and IGMP Snooping.

-Static MAC allows users to create a MAC whitelist for specific ports, helping administrators limit network access to authorized devices only.

-Storm Control monitors broadcast, multicast, or unknown unicast traffic and will start blocking or discarding packets which could flood the network when the defined threshold is exceeded.

-IGMP Snooping is able to reduce the loading of L3 multicast routers and save bandwidth in network throughput.

Easy Troubleshooting

-The DXS-1100-10TS features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily.

- Loopback Detection is used to detect loops created by a specific port and automatically shuts down the affected port.

-Cable Diagnostics help network administrators quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.

Technical Specifications

-Bảo hành: 36 tháng.
