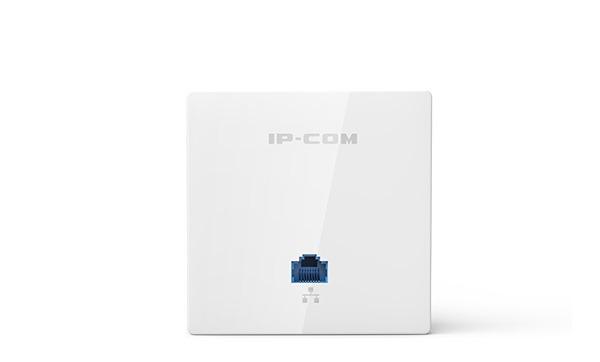

11AC 1200Mbps Wireless In-Wall Access Point IP-COM AP265
- Băng tần: 2.4GHz + 5Ghz dual band.
- Tốc độ không dây: 300Mbps (2.4GHz) + 867Mbps (5Ghz).
- SSID: 8 (2.4Ghz), 4 (5Ghz).
- Chuẩn: IEEE 802.11b/g/n/ac.
- Cổng kết nối: 1x10/100Mbps PoE+Data Input LAN, 1x10/100Mbps Data Output LAN.
- Bảo mật: 64/128 WEP, WPA-PSK, WPA2-PSK, WPA&WPA2-PSK, WPA, WPA2.
- AP Management: AC1000, AC2000, AC3000.
- Kích thước: 86x86x35 mm.
Đặc tính kỹ thuật
| Model | AP265 |
| Hardware Features | |
| Dimensions | 86x86x34.8mm |
| Frequency Range | 2.4GHz & 5GHz dual band |
| Wireless Standards | IEEE 802.11a/b/g/n/ac |
| Max 2.4GHz wireless rate | 300Mbps |
| Max 5GHz wireless rate | 867Mbps |
| MU-MIMO | Support |
| Interface | 1x10/100Mbps PoE+Data Input LAN 1x10/100Mbps Data Output LAN |
| Button | 1xReset |
| 2.4GHz Antennas | 4dbi |
| 5GHz Antennas | 4dbi |
| Maximum Power Consumption | 3.8W |
| LED indicator | SYS, LAN |
| Power Supply | PoE 802.3af |
| 2.4GHz Receiver sensitivity | 11n MCS0 -92dBm 11n MCS7 -72dBm |
| 5GHz Receiver sensitivity | 11a 6Mbps -92dBm 11n MCS7 -72dBm 11ac MCS9 -64dBm |
| Software Features | |
| Operating Mode | AP/Client+AP |
| Compliant Standards | IEEE 802.11n/g/b |
| 2.4GHz SSID | 8 |
| 5GHz SSID | 4 |
| Enable/Disable Wireless Radio | Support |
| SSID Hidden | Support |
| Wireless Client isolation | Support |
| SSID Isolation | Support |
| Client Limitation For SSID | Support |
| Wireless Access Control | Support |
| Weak Signal Client Limitation | Support |
| Transmission Power | Adjustable power by 1dBm |
| 5GHz Band Steering | Support |
| WMM Capable | Support |
| APSD Capable | Support |
| Wireless Security | 64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2 |
| VLAN Tagging for SSID | Support |
| DHCP Server | Support |
| DHCP Client List | Support |
| Capative Portal | Support (Work with AP controller AC2000/AC3000) |
| Cloud Deployment | Support |
| VPN Pass-Through | PPTP, L2TP |
| Schedule Reboot | Support |
| Diagnosis Tool | Ping,Signal Scan |
| Time&Date Setting | Support |
| Firmware upgrade | Support |
| Backup/Restore Configuration | Support |
| Username Managerment | Support |
| System Log | Support |
| Managed By Controller | AC1000/AC2000/AC3000 |
| Others | |
| Package Contents | 1xWireless Access Point 2xScrews 1xQuick Installation Guide |
| Operating Temperature | -10℃ ~ 45℃ |
| Storage Temperature | -30℃ ~ 70℃ |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 10%~90% non-condensing |
| Default IP | 192.168.0.254 |
| Default Login Username | Admin |
| Default Login Password | Admin |
| Certifications | CE/RoHS |
- Bảo hành: 24 tháng.
