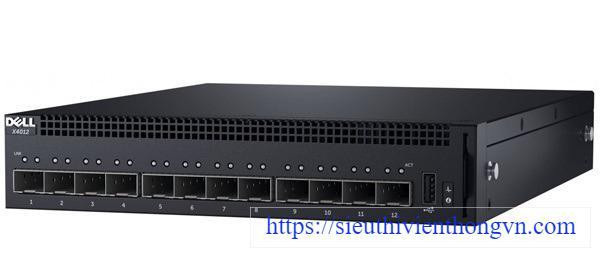

12-port Gigabit Managed Switch DELL X4012
Product Code: 210-AEOQ
- 12 x 10Gb SFP+ ports
- Optional X-Series 1RU Tandem Switch Tray supports two X4012 switches mounted side-by-side
Features
- Supports Virtual Cable Diagnostics by Marvell and fiber transceiver diagnostics to provide advanced troubleshooting capabilities for your cable infrastructure
- Integrated LEDs for improved visual monitoring and analysis
- Supports up to 4096 port-based VLANs.
- Honors 802.1p values and honors IP DSCP values
- Supports strict priority and configurable weighted round robin (WRR) scheduling across queues
- Industry-standard link aggregation adhering to IEEE 802.3ad standards (static and dynamic, LACP)
- Supports 12 link aggregation groups and up to 4 ports per group
- Local password and restricted IP addresses for secure access to the switch Port mirroring provides the capability of mirroring 8 source ports and VLAN mirroring to improve network traffic monitoring and troubleshooting
- Switch software can be easily uploaded to the switch through the web-management interface
- Configurations can be easily uploaded to and from the switch through the intuitive web-management interface
- Port statistics available through industry-standard RMON
- Switch is factory-configured as an unmanaged switch, but can be easily configured as a web-managed switch with the push of a button
- Jumbo frame support for packets up to 9,000 bytes
- Broadcast storm control to help eliminate network traffic storms
- 100% lead-free
Đặc tính kỹ thuật
| Model | X4012 |
| Ports | 12 x 10 Gigabit SFP+ |
| Performance | Switching fabric bandwidth: 240 Gbps Forwarding performance: 178.6 Mpps |
| MAC Address Table Size | 16000 entries |
| Capacity | MAC addresses: 16000 LAG groups: 12 Priority queues per port: 8 Virtual interfaces (VLANs): 4096 Maximum member ports per LAG: 8 |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON, SNMP 3, HTTP, CLI |
| Authentication Method | RADIUS, TACACS+ |
| Features | Auto-negotiation, VLAN support, Syslog support, port mirroring, Broadcast Storm Control, IPv6 support, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Cable Test (VCT) technology, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, MLD snooping, Uni-Directional Link Detection (UDLD), DNS server, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), SNMP trap, static routing, GARP VLAN Registration Protocol (GVRP), SNMP support, ARP inspection, Head of Line Blocking Prevention, Back Pressure Support, Proprietary Protocol Filtering |
| Interfaces | 12 x 10Gbit LAN SFP+ 1 x USB Type A management 1 x micro-USB management |
| Power Device | Internal power supply |
| Power Provided | 100W |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 81W |
| Dimensions | 20.9 x 25 x 41.25 cm (WxDxH) |
- Bảo hành: 03 năm.
