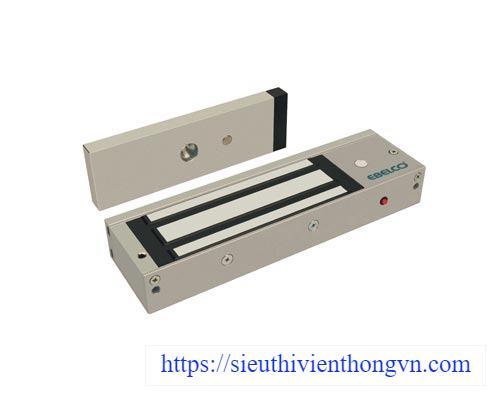

EM1200-LED-Magnetic Contact
- MS 000002549
- EBELCO
Voltage Input : 12 VDC / 24 VDC
Current Draw : 12V / 500mA ; 24V / 250mA (±5%)
Holding Force : Up to 1200 lbs (545 kg)
Hall Effect Contact : SPDT rated 2A at 24 VDC
Anti-Rust Surface Treatment : Blue Zinc Plating
Operating Temperature : 0~55° C ( 32~131° F)
Operating Humidity : 0~95% ( non condensing)
Weight ( Magnet) : 2.5 kg (±1%)
Dimensions :
Magnet – (L)266x(W)67x(T)39 mm
Armature – (L)185x(W)61x(T)16.5 mm
