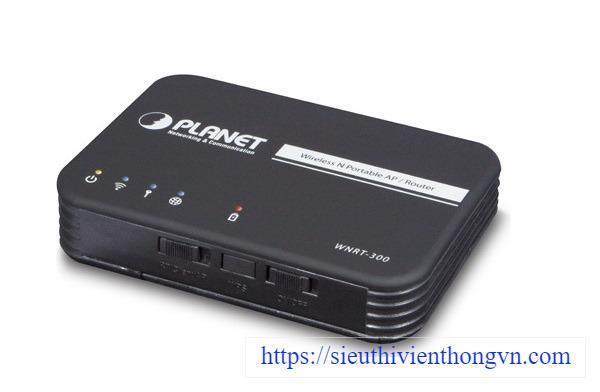

150Mbps 802.11n Wireless Portable AP/Router PLANET WNRT-300
Industrial Compliant Wireless LAN & LAN
- Compliant with IEEE 802.11n wireless technology capable of up to 150Mbps data rate.
- Backward compatible with 802.11b/g standard.
- Equipped with one 10/100Mbps RJ-45 Ethernet port for LAN/WAN, Auto MDI/MDI-X supported.
Wireless Network Range Extender
- Multiple Wireless Modes: AP, WDS, Repeater, Universal Repeater, Client.
- Supports WMM (Wi-Fi Multimedia), Wireless QoS.
- Supports IAPP (Inter Access Point Protocol), Wireless Roaming.
Fixed-network Broadband Router
- Supported Internet types: Dynamic IP/Static IP/PPPoE/L2TP/PPTP.
- Supports Static & Dynamic (RIP1 and 2) Routing.
- Supports IP/MAC-Based Bandwidth Control.
- Supports 802.1d STP & IGMP Proxy.
Secure Network Connection
- Advanced security: 64/128-bit WEP, WPA-Enterprise/ WPA2-Enterprise and WPA-PSK/WPA2-PSK with TKIP/AES Encryption, 802.1x Authentication.
- Built-in NAT firewall features with Port/IP/MAC/URL Filtering, and DoS protection.
- Supports 802.1Q VLAN.
Advanced Networking Function for Specific Application
- Supports multiple sessions IPSec, L2TP, PPTP, and IPv6 VPN pass-through.
- Supports Port Forwarding, DMZ, UPnP and Dynamic DNS for various networking applications.
- Supports DHCP Server.
Easy to Install & Management
- Web-Based UI and setup Wizard for easy configuration.
- System status monitoring includes DHCP Client and System Log.
Flexible Application & Business-oriented design
- Portable and Pocket-sized design for true mobility.
- Hardware switchable operation modes: Router/AP/Client.
- One-touch Wi-Fi Protected Setup (WPS).
- Built-in rechargeable Li-ion battery.
Specifications
| Hardware Specification | |
| Interface | LAN/WAN : 1 x 10/100Mbps Auto MDI/MDI-X RJ45 port |
| Antenna | Gain: 1 x Internal 2dBi Antenna Orientation: Omni-directional |
| Button/Switch | Front panel (from left to right): - Mode Selection Switch (Router/Client/AP) - WPS Button - Power On / Off Switch Rear panel: - Reset button |
| LED Indicators | PWR, WLAN, WAN/LAN, WPS, CHG |
| Material | Plastic |
| Dimension (W x D x H) | 88x62x18 mm |
| Weight | With battery: 80g Without battery: 58g |
| Battery | Built-in Rechargeable Li-ion Battery (3.7V, 1050mAh) |
| Power Requirement | DC 5V , 0.4A maximum, connected through mini-USB connector |
| Power Adapter | AC Input: 100~240V AC (50/60Hz) DC Output: 5V with max. 1A current |
| Standard Accessory | Power Adapter x 1, USB Cable x 1, Ethernet Cable x 1, Li-ion Battery x 1, CD-ROM x 1, Quick Guide x 1 |
| Wireless Interface Specification | |
| Standard | Compliance with IEEE 802.11b/g/n |
| Frequency Band | 2.4 ~ 2.4835GHz |
| Extend Frequency | DSSS |
| Modulation Type | DBPSK, DQPSK, QPSK, CCK and OFDM (BPSK/QPSK/16QAM/64-QAM) |
| Data Transmission Rates | 11n: Up to 150Mbps (Dynamic) 11g: Up to 54Mbps (Dynamic) 11b: Up to 11Mbps (Dynamic) |
| Transmission Distance | Indoor up to 100m Outdoor up to 300m (Depends on the environment conditions) |
| Channel | America/ FCC: 2.412 ~ 2.462GHz (11 Channels) Europe/ ETSI: 2.412 ~ 2.472GHz (13 Channels) Japan/ TELEC: 2.412 ~ 2.484GHz (14 Channels) |
| Max. RF Power | 20 dBm (EIRP) |
| Receive Sensitivity | 135M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER |
| Software Features | |
| Operation Mode | AP/Router/Client (Switchable by hardware) |
| Wireless Mode | AP, WDS, Repeater (WDS+AP), Universal Repeater (AP + Client) |
| Encryption Security | WEP (64/128-bit) encryption security WPA-Enterprise / WPA2-Enterprise (TKIP/AES) WPA-Personal / WPA2-Personal (TKIP/AES) 802.1x Authentication |
| Wireless Security | Provides wireless LAN ACL (Access Control List) filtering Wireless MAC address filtering Supports WPS (Wi-Fi Protected Setup) Multiple SSID up to 5 wireless groups, each mapped to a separate 802.1p/q tagged VLAN Enable / Disable SSID Broadcast |
| Wireless Advanced | WMM (Wi-Fi Multimedia): 802.11e Wireless QoS IAPP (Inter Access Point Protocol): 802.11f Wireless Roaming Provides Wireless Statistics |
| Internet Connection Type | Shares data and Internet access by supporting the following types of internet access: - PPPoE - Dynamic IP - Static IP - PPTP - L2TP |
| Firewall | NAT firewall with SPI (Stateful Packet Inspection) Built-in NAT server supporting Port Forwarding, and DMZ Built-in firewall with IP address/ MAC address/ Port/ URL filtering Supports ICMP-FLOOD, UDP-FLOOD, TCP-SYN-FLOOD filter, and DoS protection Supports 802.1Q VLAN up to 4 |
| Routing Protocol | Static / Dynamic (RIP1 and 2) Routing |
| VPN Pass-through | PPTP, L2TP, IPSec, IPv6 |
| LAN | Built-in DHCP server supporting static IP address distributing Supports UPnP, Dynamic DNS Supports IGMP Proxy Supports 802.1d STP (Spanning Tree) IP / MAC-based Bandwidth Control |
| System Management | Web-Based (HTTP) management interface SNTP time synchronize Easy firmware upgrade System Log supports Remote Log |
| Standards Conformance | |
| IEEE Standards | IEEE 802.11n (1T1R, up to 150Mbps) IEEE 802.11g IEEE 802.11b IEEE 802.11i IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3x Flow Control |
| Other Protocols and Standards | CSMA/CA, CSMA/CD, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP |
| Environment | |
| Temperature | Operating: 0 ~ 40 Degree C Storage: -40 ~ 70 Degree C |
| Humidity | Operating: 10 ~ 90% (Non-Condensing) Storage: 5 ~ 90% (Non-Condensing) |
- Bảo hành: 12 tháng.
