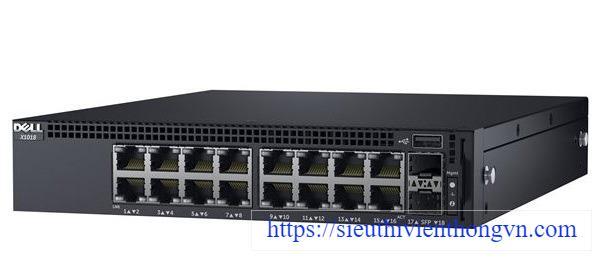

16-port Gigabit Managed Switch DELL X1018
Product Code: 210-AEIK
- 16 GbE ports
- 2 x 1Gb SFP ports
- Silent, fanless operation
- Optional X-Series 1RU Tandem Switch Tray supports two X1018 switches mounted side-by-side
Features
- Elegant interface, effortless management
- Easy integration with your network
- Rapidly configure and tune network performance
- Optimize traffic with automation
- Gain visibility with a detailed dashboard
- Skip the learning curve
- Monitor and resolve issues with 'actionable monitoring'
- Reduce configuration errors and eliminate extra steps with help from multi-port batch routines and port profiles for common devices
- Optimize cloud services and onsite network applications with security and traffic-priority features
Đặc tính kỹ thuật
| Model | X1018 |
| Ports | 16 x 10/100/1000 + 2 x Gigabit SFP |
| Performance | Switching fabric bandwidth: 36 Gbps Forwarding performance: 26.8 Mpps |
| MAC Address Table Size | 16000 entries |
| Capacity | MAC addresses: 16000 LAG groups: 12 Priority queues per port: 4 Virtual interfaces (VLANs): 4096 Maximum member ports per LAG: 8 |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON, SNMP 3, HTTP, CLI |
| Authentication Method | RADIUS, TACACS+ |
| Features | Auto-negotiation, VLAN support, Syslog support, port mirroring, Broadcast Storm Control, IPv6 support, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Cable Test (VCT) technology, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, MLD snooping, Uni-Directional Link Detection (UDLD), DNS server, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), SNMP trap, static routing, GARP VLAN Registration Protocol (GVRP), SNMP support, ARP inspection, Head of Line Blocking Prevention, Back Pressure Support, Proprietary Protocol Filtering |
| Interfaces | 16 x 1000Base-T 2 x Gigabit LAN SFP 1 x USB Type A management 1 x micro-USB management |
| Power Device | Internal power supply |
| Power Provided | 40W |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 21.5W |
| Dimensions | 20.9 x 25 x 41.25 cm (WxDxH) |
- Bảo hành: 03 năm.
