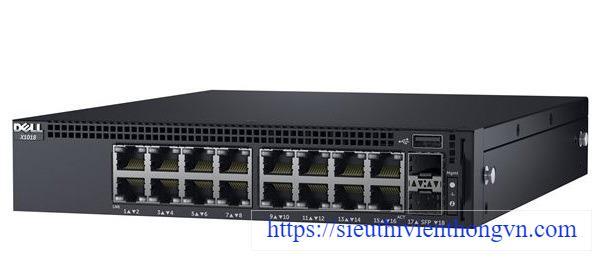

16-port Gigabit PoE Managed Switch DELL X1018P
Product Code: 210-AEIL
- 16 GbE ports
- 2 x 1Gb SFP ports
- 16 PoE ports
- Optional X-Series 1RU Tandem Switch Tray supports two X1018 switches mounted side-by-side
Đặc tính kỹ thuật
| Model | X1018P |
| Ports | 16 x 10/100/1000 + 2 x Gigabit SFP |
| Power Over Ethernet | PoE |
| PoE Budget | 240 W |
| Performance | Switching fabric bandwidth: 36 Gbps Forwarding performance: 26.8 Mpps |
| MAC Address Table Size | 16000 entries |
| Capacity | MAC addresses: 16000 LAG groups: 12 Priority queues per port: 4 Virtual interfaces (VLANs): 4096 Maximum member ports per LAG: 8 |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON, SNMP 3, HTTP, CLI |
| Authentication Method | RADIUS, TACACS+ |
| Features | Auto-negotiation, VLAN support, Syslog support, port mirroring, Broadcast Storm Control, IPv6 support, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Cable Test (VCT) technology, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, MLD snooping, Uni-Directional Link Detection (UDLD), DNS server, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), SNMP trap, static routing, GARP VLAN Registration Protocol (GVRP), SNMP support, ARP inspection, Head of Line Blocking Prevention, Back Pressure Support, Proprietary Protocol Filtering |
| Interfaces | 16 x 1000Base-T PoE 2 x Gigabit LAN SFP 1 x USB Type A management 1 x micro-USB management |
| Power Device | Internal power supply |
| Power Provided | 280W |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 27.3W |
| Dimensions | 20.9 x 25 x 41.25 cm (WxDxH) |
- Bảo hành: 03 năm.
