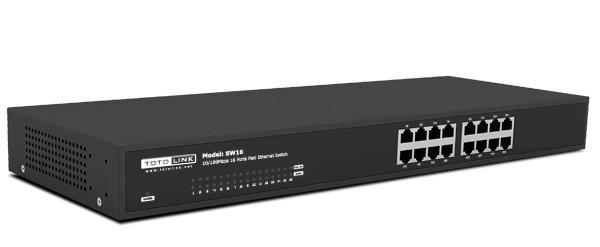

16 ports 10/100Mbps Switch TOTOLINK SW16
- 16 ports 10/100Mbps, Auto negotiation (MDI/MDIX)
- Wire-speed performance, 19' rackmount type
- Support per-port bandwidth control
- Support flow control, Nway auto-negotiation for any port
- MAC address auto-leading and auto AGING
- Store and forward
- Support PHY register read/write access
- Standards IEEE802.310Base-T IEEE802.3U100Base-TX
Standard | IEEE802.3,IEEE802.3u,IEEE802.3X |
Cable | Cat,3,4,5 UTP/STP |
port | 10/100Mbps N-Way Switch T 16 |
Duplex Modes | Duplex All Ports(Up to 200Mbps) |
Uplink | All ports Auto MDI/MDIX(Auto Uplink) |
Protocol | CSMA/CD |
Switching Architecture | Store & Forward |
Filter/Forward Rate | 10 BASE-T-14880pps (packets/sec.) 100 BASE - TX- 148800 pps ( packet/sec.) |
Mac Address | 8K |
Backplane Bandwidth | 3.2Gbps |
Chipset | RTL8316D/S |
LED | Power 1 LED ,10/100Mbps Link LED ;LED per Port |
Power | DC 3.3V/2A 100V~240VAC |
Material | Iron |
Operating Temperature | 0~40 degree |
Storage Temperature | -10~65 degree |
Operating Humidity | 10%~90% non-condensing |
Size | 440mm *160mm *44.5mm |
- Công nghệ Hàn Quốc, lắp ráp tại Trung Quốc.
- Bảo hành: 24 tháng.
