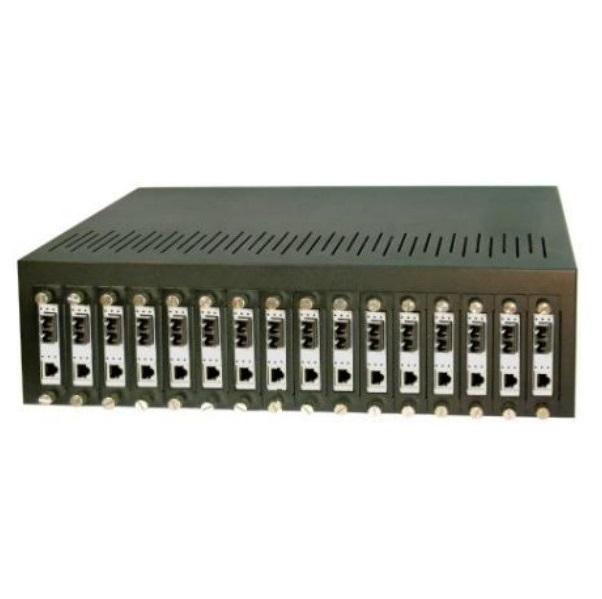

16 Slots Media Converter Rack EDIMAX ET-950MCR
- The Edimax ET-950MCR media converter chassis providing more capacity to the converters in one chassis, the ET-950MCR is able to host up to 16 Edimax’s ET-912+ and ET-913+V2 series media converters.
- All converters are individually secured into the chassis and can be hot-swapped for maximum connection reliability. The Chassis is a standard 19 inch rack mountable size, to save more spaces for fiber-optic wiring and ease to maintain of media converters.
- The dual hot-swappable power supplies ensure continues network operation, and independent power supply in each bay of the ET-950MCR, you can freely install the converters without interrupting the rest of the networks.
Features
- Supports up to 16 media converters
- Supports 19” standard rack-mount size
- Supports Fast Ethernet, Gigabit Ethernet, Single-mode and Multi-mode fiber media converters
- Supports Hot-swappable of Media Converters and Power Supplies
- Two redundant power supplies with two cooling fans
- Power isolation design to ensure each bay is electrically isolated from others
- Cost-effective and easy install
Specifications
| Capacity | 16 bays for up to 16 Media Converters |
| Power | AC Redundant Power Supply Input: 100 ~ 240V AC, 50 ~ 60Hz |
| Cooling | Two internal cooling fans |
| Dimensions | 440 × 300 × (L x W x H) |
| Operating Temperature | 0 to 50℃ |
| Storage Temperature | -20 to 70℃ |
| Humidity | 10 to 90% RH (non-condensing) |
