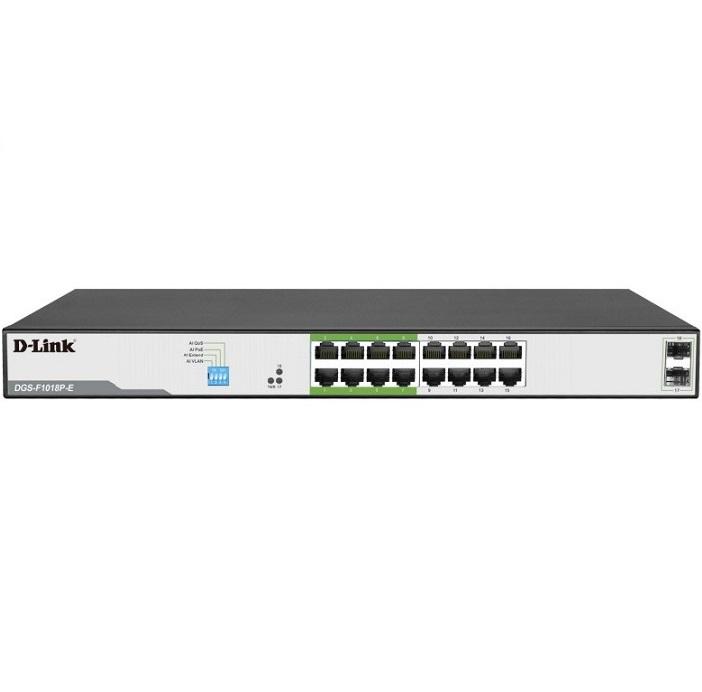

16-Port 1000Mbps PoE + 2-Port SFP Switch D-Link DGS-F1018P-E
High-Speed Networking
- 16 10/100/1000 Mbps Ethernet ports
- Full/half-duplex for Ethernet/Fast Ethernet/Gigabit
- 2 SFP Uplink
Functions
- VLAN
- EXTEND
- PoE
- QoS
Easy Setup
- Plug-and-play installation
- Auto MDI/MDI-X crossover on all ports
PoE Functionality
- Sixteen PoE ports
- IEEE 802.3af/at compliant
- 150 W total power budget
- Up to 30 W power output per PoE port
Specifications
| General | |
| Size | Desktop (with Mounting Kit) |
| Interfaces | 16 10/100/1000 BASE-T ports 2 SFP |
| OSI Layer | Layer 2 |
| Media Interface Exchange | Auto MDI/MDI-X adjustment on all ports |
| Lighting Protection | 6KV |
| Performance | |
| Switching Fabric | 36 Gbps |
| Mac address | 8K |
| Transmission Method | Adopt Store-and-forward |
| Data Transfer Rates | Gigabit Ethernet: 1000 Mbps Ethernet: 100 Mbps |
| Packet Filtering / Forwarding Rates | 10M port maximum 14800pps 100M port maximum 148800pps 1000M port maximum 1488000pps |
| PoE | |
| PoE Standards | IEEE 802.3af, IEEE 802.3at |
| PoE-Capable Ports | Port 1 - 16 (Port 1 - 8 PoE can support up to 250m @ 10Mbps with Extend enabled) |
| Power Budget | 150W (30 W max. per PoE port) |
| Physical | |
| LED Power | Yes |
| LED Link/Activity | Yes |
| Weight | 3kg |
| Dimensions | 440 x 180 x 44 mm |
| Power | 150W |
| Temperature | Operating: 0 to 40 ˚C (32 to 104 ˚F) |
| Humidity | Operating: 0% to 95% RH non-condensing Storage: 0% to 95% RH non-condensing |
- Bảo hành: 36 tháng.
