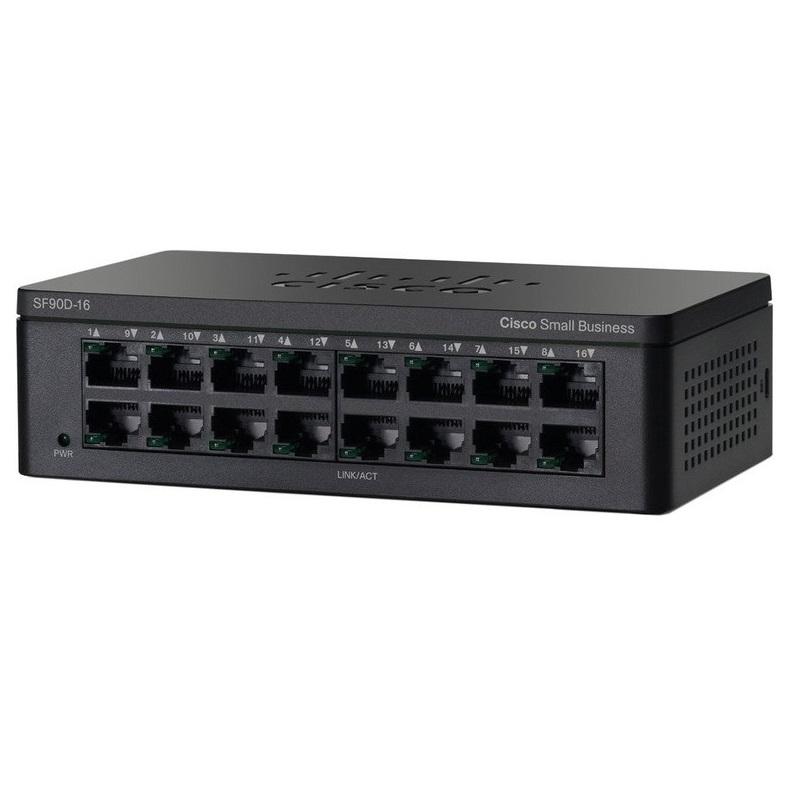

16-Port 10/100 Ethernet Switch Cisco SF90D-16
- Ease of use: Cisco 90 Series switches work right out of the box, with no software to install and nothing to configure. Each switch port independently sets itself for the optimal speed and determines whether to run in half- or full-duplex mode automatically. As a standards-based Cisco solution, Cisco 90 Series switches are also designed to immediately accommodate all of the devices in your network, including:
+ Support for 10 megabits per second (Mbps), 100 Mbps, and up to 1 gigabit per second (1000 Mbps) devices in the same network.
+ Automatic cable detection, so you don’t have to worry about using the wrong cable type.
+ Compatibility with network devices from other vendors
- Simple setup: Designed for small office spaces, Cisco 90 Series switches are available in both compact desktop and rack-mount models. The desktop models offer a wall-mount option for discreet mounting under a desk or on the wall of an office or conference room.
- High performance: Cisco 90 Series switches deliver the performance you need to run your business applications – including bandwidth-intensive video services – and avoid slow and sluggish networks. It supports up Gigabit Ethernet speeds, unlocking a new level of capacity and performance in your business network and letting you transfer large files in seconds.
- Support for advanced technologies: All switches include advanced Cisco traffic-handling features to keep your applications running at peak performance. Integrated QoS intelligence on all models automatically prioritizes delay-sensitive services such as voice or video to improve your network’s performance. Fast store-and-forward switching identifies damaged packets and prevents them from being passed on through the network. All of these features run automatically, with no management or configuration required.
- Peace of mind: Cisco 90 Series switches deliver the rock-solid reliability you expect from a Cisco switch. The solution has been rigorously tested to ensure optimal uptime and performance.
Specifications
| Performance | |
| Switching capacity | 3.2 Gbps |
| Forwarding capacity | 1.4 mpps |
| Layer 2 Switching | |
| Head-of-line (HOL) blocking | HOL blocking prevention |
| Jumbo Frame | 9216 bytes |
| Quality of Service (QoS) | |
| Priority levels | 4 hardware queues |
| Scheduling | Priority queuing and weighted round-robin (WRR) |
| Class of service | 802.1p priority based |
| Product Specifications | |
| Ports | 16 RJ-45 connectors for 10BASE-T/100BASE-TX |
| Cabling type | Unshielded twisted pair (UTP) Category 5 or better for 10BASE-T/100BASE-TX; 1000BASE-T recommended |
| LEDs | System/PWR, Link/Activity, 100M, Gigabit, |
| Standards | 802.3 10BASE-T Ethernet 802.3u 100BASE-TX Fast Ethernet 802.3ab 1000BASE-T Gigabit Ethernet 802.3z Gigabit Ethernet 802.3x flow control 802.1p priority 802.3az, Energy Efficient Ethernet |
| Environmental | |
| Dimensions (W x H x D) | 6.2 x 1.71 x 3.5 inches (160 x 43.5 x 90 mm) |
| Unit weight | 0.99 lb. (0.45kg) |
| Power | DC 12V, 1.0A |
- Bảo hành: 12 tháng.
