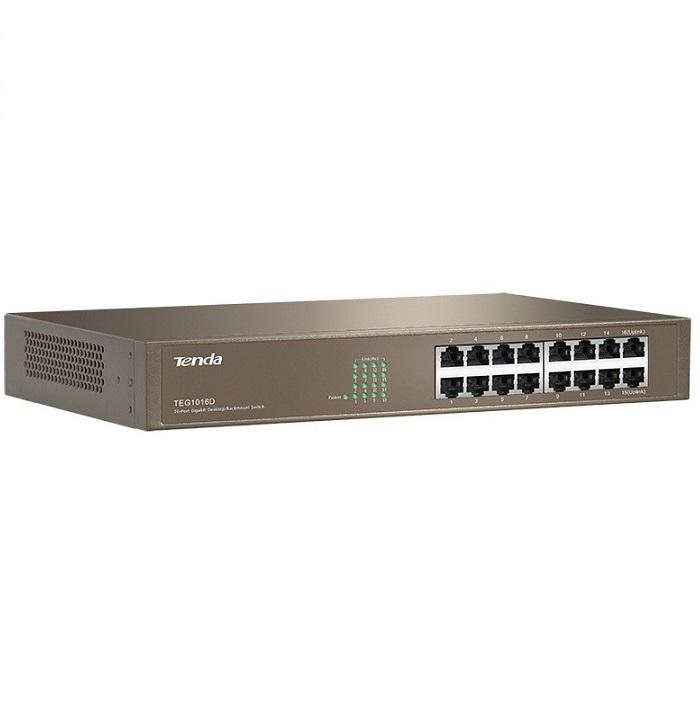

16-port 10/100/1000Mbps Switch TENDA TEG1016D
-Compatible with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE802.3x and IEEE802.3ab 1000Base-T standards.
-Allows and assures packets to be forwarded by all ports at full wire speed.
-16 10/100M/1000M auto-negotiated RJ45 ports.
-Support MDI/MDIX auto-negotiation.
-Support storage and forwarding.
-With inducive lightening protection towards the power adapter and ports, and enterprise-level design of 1U (thickness)-steel casing and 19-inch rack; With the help of hangers, it can be installed on the standard rack.
-Support 6000V lightning protection for power supply.
-Support 4000V lightning protection for RJ45 port.
-Support loop detection and prevention.
-Support standard 13/19 inch rack-mountable.
-Support Plug and Play, without any configuration.
Đặc tính kỹ thuật
| Model | TEG1016D |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab |
| Intertface | 16 x 10/100/1000M auto-negotiation RJ45 ports (Auto MDI/MDIX) |
| Transmission Media | 10Base-T: Cat. 3 UTP or better 100Base-TX: Cat.5 UTP or better. 1000Base-T: Cat.5e UTP or better |
| Forwarding Speed | 10Mbps: 14880pps, 100Mbps: 148800pps, 1000Mbps: 1488000pps |
| Power | Input: AC: 100-240V; 50/60Hz |
| Lightning Level | 6kV in Common Mode Protection for all ports |
| 6kV in Common Mode, 4kV in Differential mode Protection for power Supply | |
| Product Dimensions | 294 x 179 x 44mm |
| LEDs | 1 x Power, 16 x Link/Act |
| Switching Capacity | 32Gbps |
| MAC Address Table | 8K |
| Power Consumption | Maximum: 12W (220V) |
| Transfer Method | Store and Forward |
| Access Control | CDMA/CD |
| MAC Address Learning | Automatic update |
| Temperature | Operating Temperature: 0℃~40℃ |
| Storage Temperature: -40℃~70℃ | |
| Humidity | Operating Humidity: 10%~90% non-condensing |
| Storage Humidity: 5%~90% non-condensing | |
| Compatible OS | Windows 8 32/64 bit, Windows 7 32/64 bit , Windows xp 32/64 bit, Linux, MAC OS |
| Dimensions | 440 x 250 x 80mm |
| Weight | 1.3kg |
-Bảo hành: 36 tháng.
