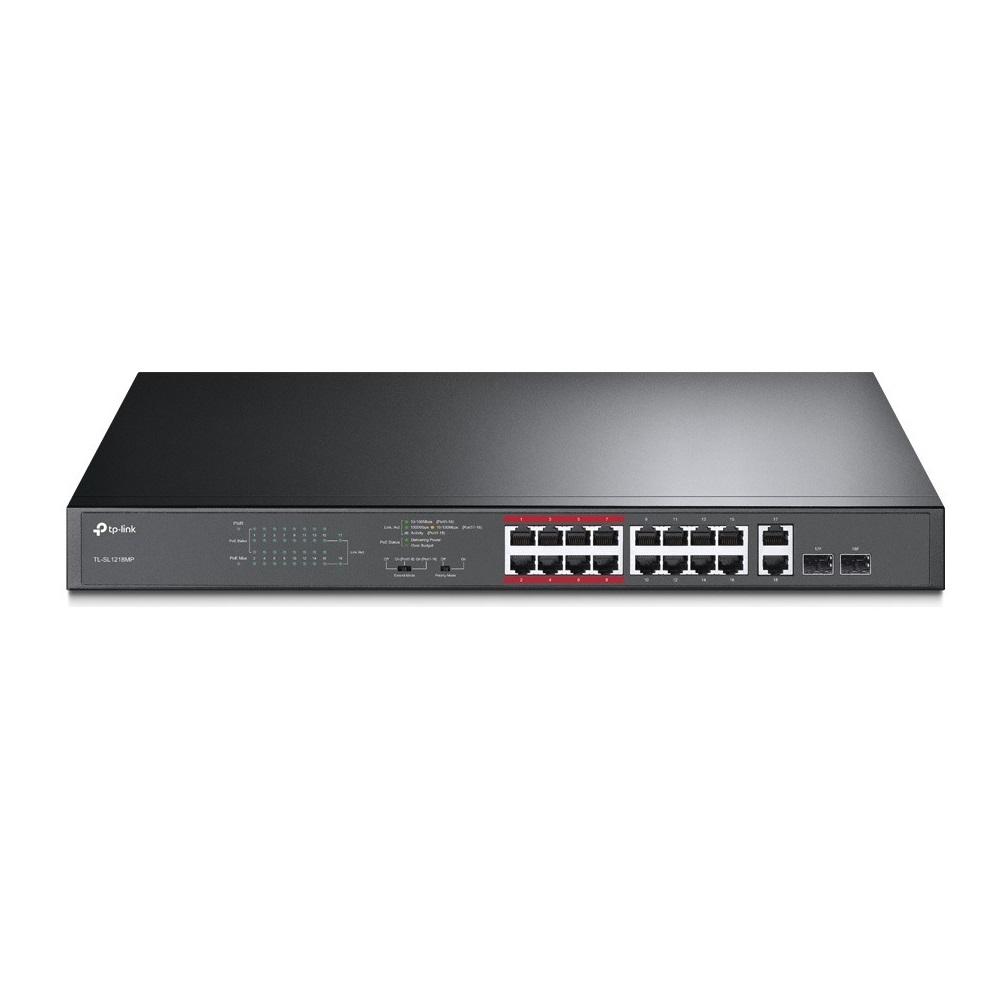

16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch TP-LINK TL-SL1218MP
- 16 PoE+ 10/100Mbps RJ45 ports, 2 Gigabit RJ45 ports and 2 combo Gigabit SFP slots.
- Up to 250m data and power transmission under extend mode specially designed for surveillance system.
- Priority mode for port1-8 to guarantees the quality of sensitive applications like video monitor.
- High PoE power budget with up to 30W for each PoE portand 194W for all PoE ports.
- Easy to use, with no configuration and installation needed.
Specifications
| Model | TL-SL1218MP |
| General | |
| Interfaces | 16 10/100Mbps RJ45 Ports 2 10/100/1000Mbps RJ45 Ports 2 Gigabit SFP Slots |
| PoE | |
| PoE Standard | 802.3af/at |
| PoE Ports | 16, up to 30W |
| PoE Power Budget | 192W |
| Performance | |
| Switching Capacity | 7.2Gbps |
| Packet Forwarding Rate | 5.36Mpps |
| MAC Address Table | 8K |
| Packet Buffer | 4.1Mbit |
| Jumbo Frame | 10KB |
| Physical & Environment | |
| Power Supply | 100-240V AC, 50/60Hz |
| Max Power Consumption | 217.22W (with 192W PD Connected) 18.73W (no PD Connected) |
| Max Heat Dissipation | 741.15 BTU/h (with 192W PD Connected) 63.91 BTU/h (no PD Connected) |
| Dimensions (W × D × H) | 17.3 × 7.1 × 1.7 in.(440 × 180 × 44 mm) |
| Fan Quantity | 2 |
| Operating Temperature | 0°C~40°C (32°F~104°F) |
| Storage Temperature | -40°C~70°C (-40°F~158°F) |
| Operating Humidity | 10%~90%RH non-condensing |
| Storage Humidity | 5%~90%RH non-condensing |
- Hàng chính hãng TP-LINK.
- Bảo hành: 12 tháng.
