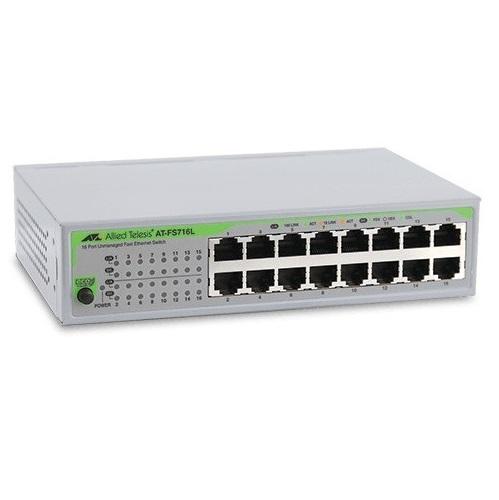

16-port 10/100TX Unmanaged Fast Ethenet Switch ALLIED TELESIS AT-FS716L
- 16 10/100TX ports.
- Wirespeed technology.
- Non-blocking architecture.
- Auto-negotiation ports.
- Auto MDI/MDIX ports.
- Transparent to VLAN packets.
- Half-duplex & full-duplex flow control.
- Sturdy metal case.
- Rack mountable.
Đặc tính kỹ thuật
| Performance | |
| Ethernet | 14,800pps for 10Mbps |
| Fast Ethernet | 148,000pps for 100Mbps |
| MAC addresses | 4 K |
| Packet buffer | 512 KB |
| Support | Half/Full-Duplex, Auto Negotiation, Auto MDI/MDI-X on all ports |
| Interface Connections | 10/100TX, RJ-45 |
| Standards and Compliance | |
| IEEE 802.3 | 10T Ethernet |
| IEEE 802.3u | 100TX Fast Ethernet |
| IEEE 802.3x | Flow control |
| Power Characteristics | |
| Frequency | 50 to 60 Hz, 100-240 VAC |
| Environmental Specifications | |
| Operating temp | 0 to 40ºC |
| Non-operating temp | -25 to 70ºC |
| Operating humidity | 5-80% non-condensing |
| Storage Humidity | 5-95% non-condensing |
| Physical Characteristics | |
| Dimensions | 3.6 x 25.0 x 11.6 cm |
| Weight | 0.9 kg |
- Bảo hành: 12 tháng.
