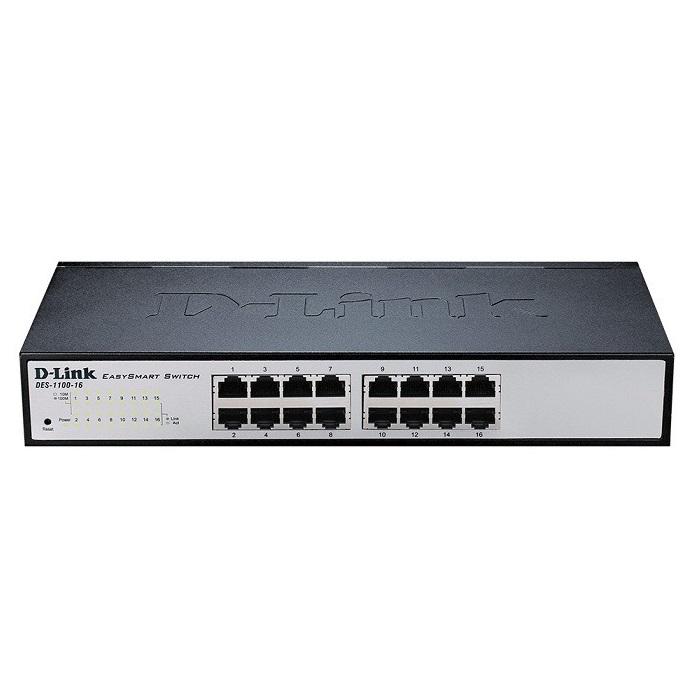

16-Port Fast Ethernet Smart Managed Switch D-Link DES-1100-16
Fanless Design
- Noiseless operation
- Reduces energy consumption
- Increased reliability
Advanced Features
- Storm control
Intuitive Management
- SmartConsole utility or web-based GUI
VLAN Features
- 802.1Q and port-based VLAN for traffic segregation
Advanced QoS
- Bandwidth control (to prevent bandwidth abuse)
- Ensures that time-sensitive data gets delivered efficiently
- Supports IEEE 802.1p QoS for up to two 802.1p priority queues
Easy Troubleshooting
- Loopback Detection auto disables ports when a loop is detected
Specifications
| Model | DES-1100-16 |
| Interface | |
| Size | 11-inch desktop size, 1U height |
| Interfaces | 16 10/100BASE-TX |
| Performance | |
| Switching Capacity | 3.2 Gbps |
| Max. Forwarding Rate | 2.38 Mpps |
| MAC Address Table | 8K entries |
| Packet Buffer | 1.75 Mbits |
| Flash Memory | 1MB |
| LEDs | |
| Power (per device) | Yes |
| Link/Active/Speed (per port) | Yes |
| Physical | |
| Acoustic | 0 dB |
| Power Input | 100 to 240 V AC, 50 to 60 Hz internal universal power supply |
| Maximum Power Consumption | 5.96W |
| Ventilation | Fanless |
| Operating Temperature | 0 to 40 ˚C |
| Storage Temperature | -10 to 70 ˚C |
| Operating Humidity | 10% to 90% non-condensing |
| Software | |
| L2 Features | MAC address table: 8K entries IGMP Snooping Static trunk Flow Control Loopback Detection (LBD) Port mirroring Statistics (supports 4 groups) |
| VLAN | 32 static VLAN groups Configures VID from 1-4094 802.1Q tagged VLAN Port-based VLAN Management VLAN |
| QoS | Bandwidth Control 2 queues per port 802.1p Queue handling |
| Security | Static MAC (max 128 static MAC entries) Broadcast/multicast/unknown unicast storm control |
| Management | Web-based GUI (supports IPv4) SmartConsole utility Password access control Port setting: set speed, duplex mode, Flow Control Configuration file backup/restore via HTTP Firmware file upgrade via HTTP |
- Bảo hành: 36 tháng.
