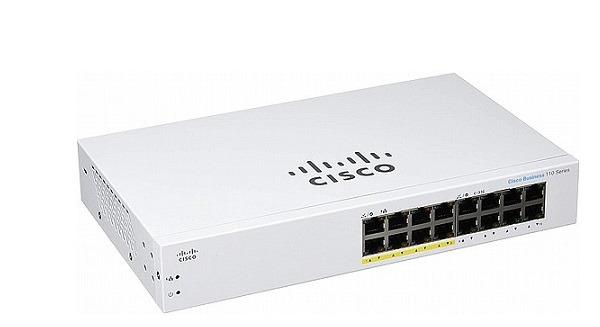

16-Port Gigabit Ethernet Unmanaged Switch CISCO CBS110-16T-EU
- Switch Cisco CBS110-16T-EU là dòng Switch Unmanaged, cung cấp 16 cổng Gigabit Ethernet giúp kết nối mạng mạnh mẽ theo nhu cầu kinh doanh, tuy nhiên vẫn đảm bảo độ tin cậy với các tính năng nâng cao như chất lượng dịch vụ (QoS), phát hiện vòng lặp và chuẩn đoán cáp. Phù hợp lắp đặt triển khai trong các công ty, văn phòng...
- Hỗ trợ 16 cổng Gigabit Ethernet
- Switching capacity: 32 Gbps.
- Quality of Service (QoS): 802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR).
- Cabling type: Category 5e or better.
- Flash: 16MB.
- CPU memory: 128MB.
- Nguồn điện: 110-240VAC, 50-60 Hz, internal, universal.
- Kích thước (W x D x H): 279 x 170 x 44 mm.
- Trọng lượng: 0.97kg.
Đặc tính kỹ thuật
| Model | CBS110-16T-EU |
| Performance | |
| Switching capacity in gigabits per second (Gbps) | 32 Gbps |
| Capacity in millions of packets per second (mpps) (64-byte packets) | 23.8 mpps |
| General | |
| Head-of-line (HOL) blocking | HOL blocking prevention |
| MAC table | 2K |
| Jumbo frame | 9216 bytes |
| Quality of Service (QoS) | 802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR) |
| Loop detection | Helps discover loops in the network to avoid broadcast storms |
| Cable diagnostics | Quickly identify and troubleshoot network cable faults and/or shorts |
| Media-dependent interface | Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X) |
| Hardware | |
| Ports | 16 Gigabit Ethernet |
| LEDs | Power, link/activity (cable diagnostics, loop detection), Gigabit, PoE, Max PoE, if present |
| Cabling type | Category 5e or better |
| Mounting options | Desktop, wall-mount or rack mount |
| Physical security lock | Kensington lock slot |
| Flash | 16MB |
| CPU memory | 128MB |
| Packet buffer | 2 Mbit |
| Environmental | |
| Unit dimensions (W x D x H) | 279 x 170 x 44 mm |
| Weight | 0.97 kg |
| Power | 110-240VAC, 50-60 Hz, internal, universal |
| System power consumption | 110V=11.33W 220V=11.53W |
| Heat dissipation (BTU/hr) | 39.34 |
| Green (power efficiency) | Supports IEEE 802.3az on all copper Gigabit Ethernet ports |
| Compliance/certifications | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
| Operating temperature | 32° to 104°F (0° to 40°C) |
| Storage temperature | –4° to 158°F (–20° to 70°C) |
| Operating humidity | 10% to 90%, relative, noncondensing |
| Storage humidity | 5% to 90%, relative, noncondensing |
| Acoustic noise and Mean Time Between Failures (MTBF) | |
| Fan (number) | Fanless |
| MTBF at 25°C (hours) | 2,685,092 |
- Bảo hành: 12 tháng.
