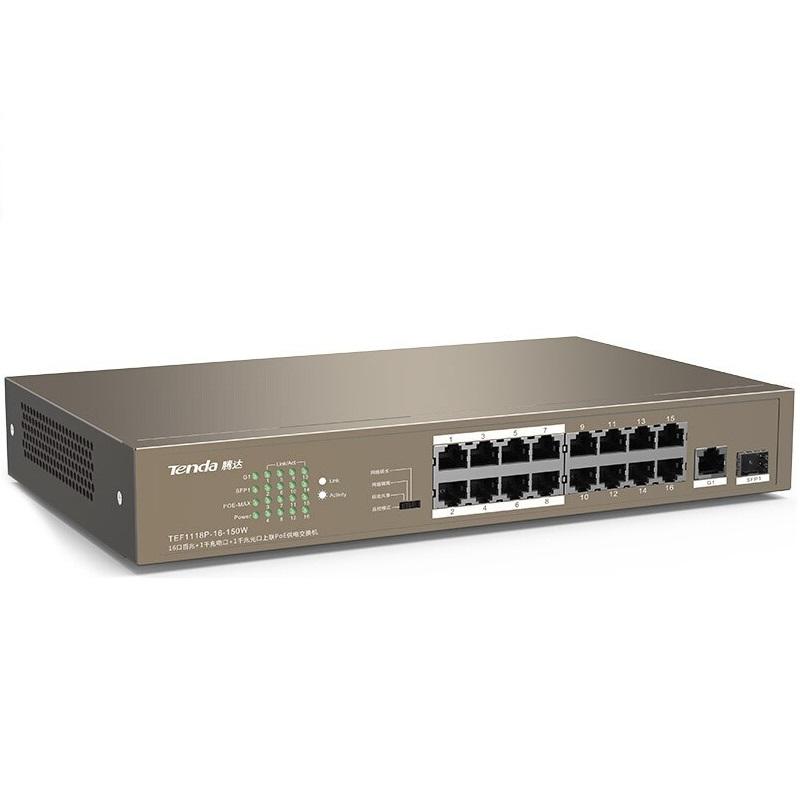

16-Port PoE 10/100Mbps + 1 Gigabit/SFP Slots Switch TENDA TEF1118P
- TEF1118P-16 not only offers 16 10/100 Mbps Base-TX RJ45 ports but also 1 10/100/1000 Mbps Base-T RJ45 ports and 1 1000 Mbps Base-X SFP port.
- Ports 1-16 comply with the IEEE 802.3af standard and 802.3at standard and each port can support a maximum PoE power output of 30 W.
- The switch offers a maximum PoE power output of 135W and it can supply power when exchanging data with APs, IP cameras, and IP phones through CAT5 cables. It also provides simple management modes such as CCTV, VLAN, and Extend to help reducing cabling costs of IP terminals.
Specifications
| Model | TEF1118P |
| Standard & Protocol | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af |
| Interface | 16 10/100Base-TX ports (Data/Power) 1 10/100/1000Base-T port (Data) 1 1000Base-X SFP port |
| Lightning Protection | 6KV |
| Store & Forward | Yes |
| Exchange capacity | 7.2 Gbit/s |
| Packet Forwarding Rate | 5.36Mpps |
| MAC Address Table | 4K |
| PoE supply management | Port 1 to Port 16 support IEEE802.3at/af PoE standard |
| Input Power | 100-240VAC, 50/60Hz |
| Power Consumption | in full configuration: <150W PoE Max Power Supply: 135W |
| Port Features | CCTV, VLAN, QoS, Standard, Extend |
| MTBF | ≥100,000hours |
| Indicator | 16*Link/Act per device 1*G1 Link/Act per device 1*SFP Link/Act per device 1*PoE-MAX per device 1*Power per device |
| Dimensions | 294 x 178 x 44 mm (W x D x H) |
- Bảo hành: 36 tháng.
