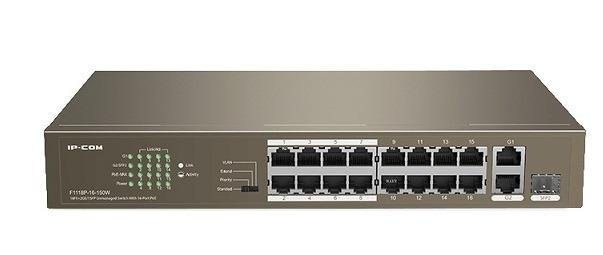

16-Port PoE 10/100Mbps PoE Switch IP-COM F1118P-16-150W
- Hỗ trợ 16 cổng 10/100Mbps PoE, 1 cổng 10/100/1000Mbps data và 1 cổng 10/100/1000Mbps SFP.
- Chuẩn kết nối: IEEE802.3/802.3u/802.3x/802.3ab/802.3af/at.
- Công suất mỗi cổng < 30W.
- Tổng công suất 150W.
- Switching capacity: 7.2Gbps.
- Packet forwarding rate: 5.36Mpps.
- Port VLAN: 1-16.
- Nguồn điện: AC 100-240V 50/60Hz.
Đặc tính kỹ thuật
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3af/at |
| LED indicators | 16 x Link/Act LEDs 1 x G1 LED 1 x G2/SFP2 LED 1 x PoE-MAX LED 1 x Power LED |
| Interfaces | 16 x 10/100 Mbps Base-TX RJ45 ports (Data/Power) 2 x 10/100/1000 Mbps Base-T RJ45 ports (Data) 1 x 10/100/1000 Mbps Base-X SFP port (Combo) |
| Lightning protection | Port: 6kV Power: 6kV |
| Forwarding mode | Store-and-forward |
| Switching capability | 7.2 Gbps |
| Packet forwarding rate | 5.36 Mpps |
| Buffer | 2.75 Mbit |
| MAC address table | 4K |
| PoE supply | Ports 1-16 support standard IEEE802.3af/at 30W output per PoE port 130W output of the total PoE Power |
| Power consumption | 150W output the whole device |
| Input voltage | AC: 100-240V~ 50/60Hz |
| Dimensions (LxWxH) | 294 mm x 178.8 mm x 44 mm |
| Four Modes | Standard: Default mode of the switch. In this mode, it works as an unmanaged switch; all ports can communicate with each other separately. Priority: In this mode, port G1 and G2/SFP2 serve as uplink ports, ports 1 – 8 serve as high priority port. All ports can communicate with each other separately. Extend: In this mode, data rate of ports 9 - 16 reduces to 10 Mbps, the maximum transmission distance can be 250 meters, and all ports can communicate with each other. VLAN: In this mode, ports 1 - 16 of the switch can communicate with port G1, G2/SFP2 separately, but cannot communicate with each other. You can enable this mode to reduce broadcast storm and isolate DHCP broadcast. |
| Operating environment | Operating temperature: 0°C - 45℃ Storage temperature: -40°C - 70°C Operating humidity: (10% - 90%)RH, non-condensing Storage humidity: (5% - 90%)RH, non-condensing |
| Certificates | CCC, FCC, CE, RoHS |
- Bảo hành: 24 tháng.
