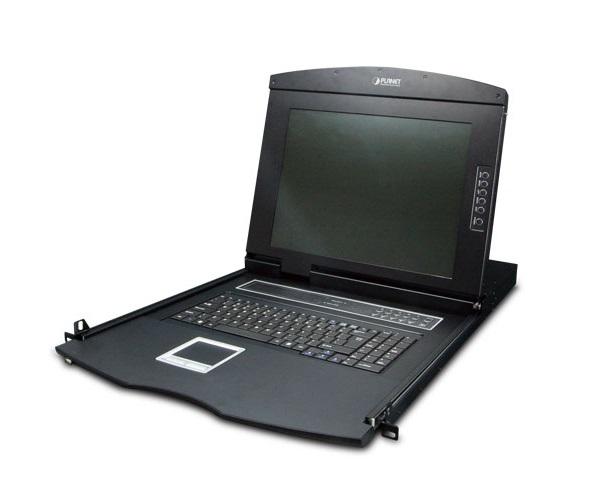

17 inch 8-Port Combo VGA LCD KVM Switch PLANET KVM-210-08M
Hardware
- Integrated 17” LCD monitor and keyboard/touchpad module within 1U chassis
- Standalone machine controls up to 8 sets of computers
- Up to 2 levels can be cascaded and up to 64 computers can be controlled
- Port Select Panel status LEDs give a clear indication of the active computers
- Supports high resolution up to 1280 x 1024
- Mouse touch board with two function buttons
- Full-size 100-key keyboard with integrated number pad
- Front panel with lock to prevent damage by accident
Security
- Two-layer password security protection
Management
- Auto scan mode for monitoring computers
- Requires no additional software or hardware
- Computer selection via Port Select Button, Hotkey and On Screen Display (OSD)
- Hot pluggable: Add or remove computers without having to power down the switch
- QVS (Quick View Setting): Quickly select your computer by naming or SN number
Compatibility
- Multiplatform support -- Windows, Linux and Sun
- Supports Microsoft Intellimouse, Logitech Net Mouse and all other third party’s PS/2 mice
Specifications
| Hardware | |||
| Number of Ports | 8 | ||
| Maximum | 64 by cascading (KVM-210-08 x 8) | ||
| PC Ports | Keyboard | PS/2 female + USB Type A female | |
| Mouse | PS/2 female + USB Type A female | ||
| Video | 8 x HDB-15 female | ||
| Port Select Panel | Number Key | 10 | |
| Reset | 1 | ||
| Enter | 1 | ||
| LED | 8 | ||
| Segment display: | 1 | ||
| LCD Panel | Monitor | 17' SXGA Color TFT-LCD | |
| Video Resolution | 1280 x 1024 | ||
| Pixel Pitch | 0.297 x 0.297 mm | ||
| Support Color | 16.2 M / 262K colors | ||
| Contrast Ratio | 1000:01:00 | ||
| Back light | LED | ||
| LCD Button | 6 | ||
| Console USB Hub Ports | 3 x USB 2.0 Type A female | ||
| Keyboard | 100 keys | ||
| Touch Pad | 1 | ||
| Housing | Metal | ||
| Dimensions (W x D x H) | 445 x 611 x 44.5 mm | ||
| Weight | 17.52kg | ||
| Power Requirement | 12V DC, 4A | ||
| Installation | 1U rack-mountable | ||
| Management | |||
| PC Selection | Port select button Hotkeys on keyboard OSD (on screen display) | ||
| Scan Interval | 5~60 seconds | ||
| Security | User password and super password | ||
| Environment & Certification | |||
| Operating Temperature | 0 ~ 50 degrees C | ||
| Operating Humidity | 0 ~ 80% | ||
| Regulatory | CE, FCC | ||
