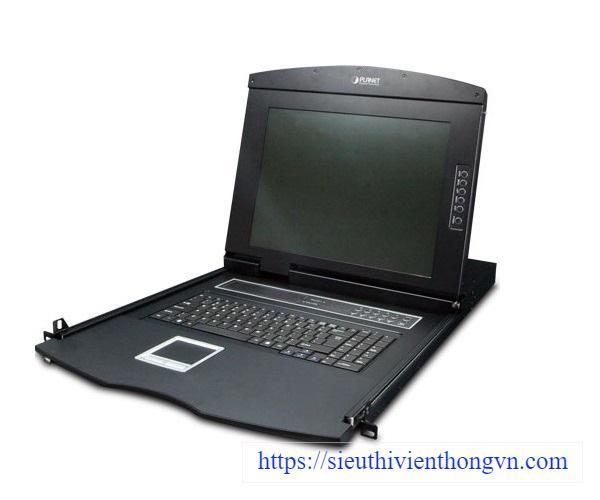

17inch 16-Port Combo VGA LCD KVM Switch PLANET KVM-210-16M
Hardware
- Integrated 17inch LCD monitor and keyboard/touchpad module within 1U chassis.
- Standalone machine controls up to 16 sets of computers.
- Up to 2 levels can be cascaded and up to 256 computers can be controlled.
- Port Select Panel status LEDs give a clear indication of the active computers.
- Supports high resolution up to 1280 x 1024.
- Mouse touch board with two function buttons.
- Full-size 100-key keyboard with integrated number pad.
- Front panel with lock to prevent damage by accident.
Security
- Two-layer password security protection.
Management
- Auto scan mode for monitoring computers
- Requires no additional software or hardware
- Computer selection via Port Select Button, Hotkey and On Screen Display (OSD).
- Hot pluggable: Add or remove computers without having to power down the switch.
- QVS (Quick View Setting): Quickly select your computer by naming or SN number.
Compatibility
- Multiplatform support -- Windows, Linux and Sun.
- Supports Microsoft Intellimouse, Logitech Net Mouse and all other third party’s PS/2 mice.
Specifications
| Hardware | |
| Number of Ports | 16 |
| Maximum | 256 by cascading (KVM-210-16 x 16) |
| PC Ports | Keyboard: PS/2 female + USB Type A female |
| Mouse: PS/2 female + USB Type A female | |
| Video: 16 x HDB-15 female | |
| Port Select Panel | Number Key: 10 |
| Reset: 1 | |
| Enter:1 | |
| LED: 16 | |
| Segment: 1 | |
| LCD Panel | Monitor: 17inch SXGA Color TFT-LCD |
| Video: 1280 x 1024 | |
| Pixel Pitch: 0.297 x 0.297 mm | |
| Support Color: 16.2 M / 262K colors | |
| Contrast Ratio: 1000:1 | |
| Back light: LED | |
| LCD Button | 6 |
| Console USB Hub Ports | 3 x USB 2.0 Type A female |
| Keyboard | 100 keys |
| Touch Pad | 1 |
| Housing | Metal |
| Dimensions (W x D x H) | 611 x 555.5 x 44.5 mm |
| Weight | 17.52kg |
| Power Requirement | 12V DC, 4A |
| Installation | 1U rack-mountable |
| Management | |
| PC Selection | Port select button Hotkeys on keyboard OSD (on screen display) |
| Scan Interval | 5~60 seconds |
| Security | User password and super password |
| Environment & Certification | |
| Operating Temperature | 0 ~ 50 degrees C |
| Operating Humidity | 0 ~ 80% |
| Regulatory | CE, FCC |
