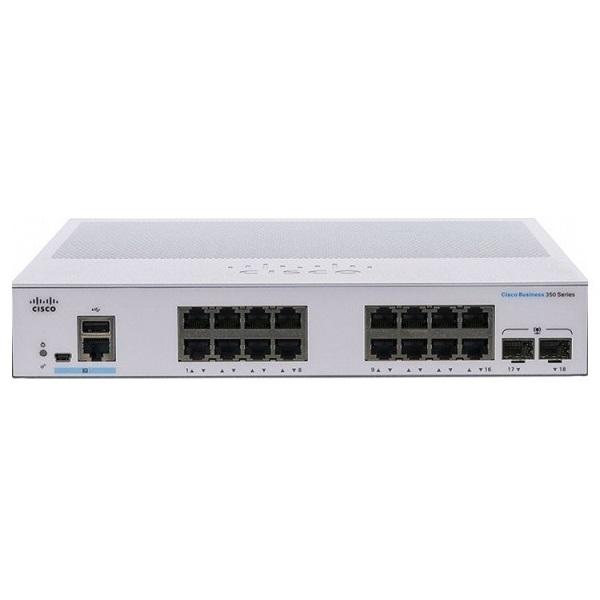

18-Port Gigabit Ethernet Managed Switch CISCO CBS350-16T-2G-EU
- Support 16-port Gigabit Ethernet and 2-port SFP.
- Switching Capacity: 36.0Gbps.
- Jumbo frames: Frame sizes up to 9K bytes. The default MTU is 2K bytes.
- MAC table: 16K addresses.
- Cabling type: Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T.
- Flash: 256MB.
- CPU: 800MHz ARM.
- DRAM: 512MB.
- Dimensions (W x D x H): 268 x 272 x 44 mm.
- Weight: 1.78kg.
Đặc tính kỹ thuật
| Model | CBS350-16T-2G-EU |
| Performance | |
| Capacity in Millions of Packets per Second (mpps) (64-byte packets) | 26.78mpps |
| Switching Capacity | 36.0Gbps |
| General | |
| Jumbo frames | Frame sizes up to 9K bytes. The default MTU is 2K bytes |
| MAC table | 16K addresses |
| Buttons | Reset button |
| Cabling type | Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T |
| LEDs | System, Link/Act, Speed |
| Flash | 256 MB |
| CPU | 800MHz ARM |
| DRAM | 512 MB |
| Packet buffer | 1.5 MB |
| Ports | |
| Total System Ports | 18 x Gigabit Ethernet |
| RJ-45 Ports | 16 x Gigabit Ethernet |
| Combo Ports (RJ45 + Small form-factor pluggable [SFP]) | 2 x SFP |
| Console port | Cisco standard mini USB Type-B/RJ45 console port |
| USB slot | USB Type-A slot on the front panel of the switch for easy file and image management |
| Discovery | |
| Bonjour | The switch advertises itself using the Bonjour protocol |
| Link Layer Discovery Protocol (LLDP) (802.1ab) with LLDP‑MED extensions | LLDP allows the switch to advertise its identification, configuration, and capabilities to neighboring devices that store the data in a MIB. LLDP-MED is an enhancement to LLDP that adds the extensions needed for IP phones |
| Cisco Discovery Protocol | The switch advertises itself using the Cisco Discovery Protocol. It also learns the connected device and its characteristics via Cisco Discovery Protocol |
| Power consumption (worst case) | |
| System Power Consumption | 110V=18.63W 220V=18.37W |
| Heat Dissipation (BTU/hr) | 64.46 |
| Environmental | |
| Unit dimensions (W x D x H) | 268 x 272 x 44 mm |
| Unit weight | 1.78 kg |
| Power | 100-240V, 50-60 Hz, internal, universal |
| Certification | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
| Operating temperature | -5° to 50°C |
| Storage temperature | -25° to 70°C |
| Operating humidity | 10% to 90%, relative, noncondensing |
| Storage humidity | 10% to 90%, relative, noncondensing |
| Acoustic noise and Mean Time Between Failure (MTBF) | |
| FAN (Number) | Fanless |
| MTBF at 25°C (hours) | 2,165,105 |
- Bảo hành: 12 tháng.
