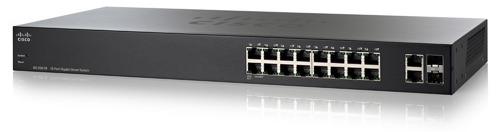

18-Port 10/100/1000Mbps Gigabit Ethernet Switch Cisco SG200-18
Part number: SLM2016T-EU
The Cisco SG200-18 18-Port 10/100/1000Mbps Gigabit Ethernet Switch lets you achieve business-class network security and performance at an affordable price. It provides an ideal solution when you require a reliable solution to share network resources and connect computers, printers and servers.
The expandable fast Cisco Ethernet SG200-18 smart switch provides basic management, security and quality-of-service features beyond those of an unmanaged or consumer-grade switch, at a lower cost than managed switches. And with an easy-to-use web user interface, Cisco Discovery Protocol and Cisco Smartports you can deploy and configure a rock-solid business network in minutes.
High-Speed Desktop Connectivity
The Cisco SG200-18 switch can quickly and securely connect employees working in small offices with one another and with all of the servers, printers and other devices they use. High performance and reliable connectivity help speed file transfers and data processing, improve network uptime and keep your employees connected and productive.
Secure Wireless Connectivity
The Cisco SG200-18 switch works with Cisco and third-party wireless solutions to extend the reach of your network. Employees can work productively from conference rooms and common areas, collaborate in any office, and access business applications from wherever they are. Gigabit Ethernet speed helps ensure that your employees have the bandwidth and performance they need to make the most of mobile productivity. And with embedded security, your employees can work with confidence, knowing that only authorized users can access the network and network applications.
Unified Communications
The Cisco SG200-18 provides QoS features to enable you to prioritize delay-sensitive traffic in your network and let you converge all of your communications solutions such as IP telephony and video surveillance over a single Ethernet network. Cisco SG200-18 offers a complete portfolio of IP telephony and other unified communications products designed for small businesses and Cisco SG200-18 switch has been rigorously tested to help ensure easy integration and full compatibility with Cisco and other vendor products.
Easy Configuration and Management
The Cisco SG200-18 switch is designed to be easy to deploy and use by small businesses or the partners that serve them. Simple-to-use web-based interfaces reduce the time it takes to deploy, manage and troubleshoot your network. Key features include:
- Cisco Discovery Protocol that simplifies setup by discovering all connected Cisco devices and allowing them to share information.
- Cisco Smartports technology that automatically configures switch ports for different connected devices (PCs, IP phones, wireless access points) based on pre-tested Cisco best practices.
- Cisco FindIT Network Discovery Utility that works through a simple toolbar on the user's web browser to discover Cisco devices on the network and display basic information, such as serial numbers and IP addresses, to aid in the configuration and speed the deployment of Cisco Small Business products.
Performance and Reliability
The Cisco SG200-18 switch has been tested to deliver the high availability and performance you expect from a Cisco switch and helps you prevent costly downtime. The Cisco SG200-18 switch speeds file transfer times, improves slow and sluggish networks, keeps your vital business applications available and helps your employees respond more quickly to customers and each other. With a network based on Cisco SG200-18 switch, you can address all of your business communication and connectivity needs and reduce the total cost of ownership of your technology infrastructure.
Network Security
The Cisco SG200-18 switch provides basic security and network management features you need to maintain a level of security for your business, keep unauthorized users off the network and protects your business data. The switch provides integrated network security to reduce the risk of a security breach, with IEEE 802.1X port security to control access to your network.
IP Telephony Support
The Cisco SG200-18 switch includes QoS features to prioritize delay-sensitive services such as voice and video, simplifies unified communications deployments and helps ensure consistent network performance for all services. For example, Auto Voice VLAN capabilities let you plug any IP phone (including third-party phones) into your IP telephony network and receive an immediate dial tone. The switch automatically configures the device with the right VLAN and QoS parameters to prioritize voice traffic.
IPv6 Support
Internet service providers worldwide are moving to the latest version of Internet Protocol to accommodate the growing number of network devices. Cisco SG200-18 switch provides native support for IPv6 alongside traditional IPv4. That means you can take full advantage of IPv6-enabled operating systems and applications in the future, without having to upgrade your network equipment.
Energy-Efficient Solution
The Cisco SG200-18 switch is designed to be eco-friendly without compromising performance. It helps conserve energy by optimizing power use, which helps protect the environment and lowers your energy costs. Power-saving features include:
- Automatic power down on Gigabit ports when a link is not active.
- Embedded intelligence to adjust power based on cable length.
- Fanless design which reduces power consumption, increases reliability and provides quieter operation.
Additional Gigabit Ethernet Ports
The Cisco SG200-18 switch provides more ports per switch than other switches in the market, giving you more flexibility to connect and empower your business. The Cisco SG200-18 also offers mini Gigabit Interface Converter (mini-GBIC) expansion slots that give you the option to add fiber optic or Gigabit Ethernet uplink connectivity to the switch. With the ability to increase the connectivity range of the switches, you have more flexibility to design your network around your unique business environment and to easily connect switches on different floors or across the business.
Specifications
Performance | Capacity in Mpps (64-byte packets): 26.78 |
| |
Switching Capacity in Gbps: 36.0 | |
Layer 2 Switching | Spanning Tree Protocol: Standard 802.1d STP support |
Fast convergence using 802.1w (Rapid Spanning Tree), enabled by default | |
| |
Port Grouping: Support for IEEE 802.3ad Link Aggregation Control Protocol | |
- Up to 8 groups | |
- Up to 4 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation | |
| |
VLAN: 16 VLANs supported | |
Port-based and 802.1Q tag-based VLANs | |
| |
Voice VLAN: Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS | |
| |
Internet Group Management Protocol Versions 1 and 2 Snooping: Internet Group Management Protocol limits bandwidth-intensive multicast traffic to only the requesters; supports 256 multicast groups | |
| |
Head-of-Line (HOL) blocking: Head-of-line blocking | |
Security | IEEE 802.1X (Authenticator Role): RADIUS authentication and accounting, MD5 hash |
| |
Port Security: Locks MAC addresses to ports and limits the number of learned MAC addresses | |
| |
Storm Control: Broadcast, multicast and unknown unicast | |
Quality of Service | Priority Levels: 4 hardware queues |
| |
Scheduling: Strict priority and weighted round-robin | |
Queue assignment based on differentiated services code point (DSCP) and class of service (802.1p/CoS) | |
| |
Class of Service: Port based, 802.1p VLAN priority based, IPv4/v6 IP precedence/type of service (ToS)/DSCP based, Differentiated Services (DiffServ) | |
| |
Rate Limiting: Ingress policer, per VLAN and per port | |
Standards | IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3ad LACP, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, IEEE 802.1D (STP), IEEE 802.1Q/p VLAN, IEEE 802.1w RSTP, IEEE 802.1X Port Access Authentication, IEEE 802.3af, RFC 768, RFC 783, RFC 791, RFC 792, RFC 793, RFC 813, RFC 879, RFC 896, RFC 826, RFC 854, RFC 855, RFC 856, RFC 858, RFC 894, RFC 919, RFC 922, RFC 920, RFC 950, RFC 951, RFC 1042, RFC 1071, RFC 1123, RFC 1141, RFC 1155, RFC 1350, RFC 1533, RFC 1541, RFC 1542, RFC 1624, RFC 1700, RFC 1867, RFC 2030, RFC 2616, RFC 2131, RFC 2132, RFC 3164, RFC 2618 |
IPv6 | IPv6: IPv6 host mode |
IPv6 over Ethernet | |
Dual IPv6/IPv4 stack | |
IPv6 neighbor and router discovery (ND) | |
IPv6 stateless address auto-configuration | |
Path maximum transmission unit discovery | |
Duplicate address detection | |
Internet Control Message Protocol version 6 | |
IPv6 over IPv4 network with Intra-Site Automatic Tunnel Addressing Protocol support | |
| |
IPv6 QoS: Prioritize IPv6 packets in hardware | |
| |
Multicast Listener Discovery Snooping: Deliver IPv6 multicast packets only to the required receivers | |
| |
IPv6 Applications: Web, ping, Simple Network Time Protocol, Trivial File Transfer Protocol, RADIUS, syslog, DNS client | |
| |
IPv6 RFCs Supported: RFC 2463: ICMP version 6 | |
RFC 3513: IPv6 address architecture | |
RFC 4291: IPv6 addressing architecture | |
RFC 2460: IPv6 specification | |
RFC 2461: Neighbor discovery for IPv6 | |
RFC 2462: IPv6 stateless address auto-configuration | |
RFC 1981: Path maximum transmission unit discovery | |
RFC 4007: IPv6 scoped address architecture | |
RFC 3484: Default address selection mechanism | |
RFC 4214: ISATAP tunneling | |
RFC 4293: MIB IPv6: Textual conventions and general group | |
RFC 3595: Textual conventions for IPv6 flow label | |
Management | Web User Interface: Built-in switch configuration utility for easy browser-based device configuration (HTTP). Supports configuration, system dashboard, system maintenance and monitoring |
| |
Remote Monitoring: Embedded RMON software agent supports one RMON group (statistics) for enhanced traffic management, monitoring and analysis | |
| |
IPv4 and IPv6 Dual Stack: Coexistence of both protocol stacks to ease migration | |
| |
Firmware Upgrade: Web browser upgrade (HTTP) and TFTP | |
| |
Port Mirroring: Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to 4 source ports can be mirrored to one destination port. A single session is supported | |
| |
VLAN Mirroring: Traffic from a VLAN can be mirrored to a port for analysis with a network analyzer or RMON probe. Up to 4 source VLANs can be mirrored to one destination port. A single session is supported | |
| |
Dynamic Host Configuration Protocol (Options 66 and 67): Dynamic Host Configuration Protocol options facilitate tighter control from a central point (DHCP server) to obtain IP address, auto-configuration (with configuration file download) | |
| |
Text-Editable Config Files: Config files can be edited with a text editor and downloaded to another switch, facilitating easier mass deployment | |
| |
Smartports: Simplified configuration of QoS and security capabilities | |
| |
Cloud Services: Support for FindIT Network Discovery Utility | |
| |
Localization: Localization of GUI and documentation into multiple languages | |
| |
Other Management: HTTP, RADIUS, port mirroring, TFTP upgrade, DHCP client, BOOTP, SNTP, ping, syslog | |
Power Efficiency | Energy Detect: Automatically turns off power on Gigabit Ethernet RJ-45 port when the switch detects a link down |
Active mode is resumed without loss of any packets when the switch detects the link is back up | |
| |
Cable Length Detection: Adjusts the signal strength based on the cable length. Reduces the power consumption for cables shorter than 10 m | |
General Features | Jumbo Frames: Frame sizes up to 10 KB supported on Gigabit interfaces |
| |
MAC Table: Up to 8000 MAC addresses | |
Discovery | Link Layer Discovery Protocol (802.1ab) with LLDP-MED Extensions: Link Layer Discovery Protocol allows the switch to advertise its identification, configuration and capabilities to neighboring devices, which store the data in an MIB. LLDP-MED is an enhancement to LLDP that adds the extensions needed for IP phones |
| |
Cisco Discovery Protocol: The switch advertises itself using the Cisco Discovery Protocol | |
Power Consumption | Power Savings Mode: Energy Detect (link down), short reach |
| |
Power Consumption Worst Case: 110V/P=22.4W | |
220V/P=22.9W | |
| |
Heat Dissipation (BTU/hr): 78.2 | |
Ports | Total system ports: 18 Gigabit Ethernet |
16 Gigabit Ethernet RJ-45 ports | |
2 Gigabit Ethernet combo mini-GBIC ports (RJ-45 + SFP) 1 | |
Buttons | Reset button |
Cabling Type | Unshielded twisted pair Category 5 or better for 10BASE-T/100BASE-TX; Unshielded twisted pair Category 5 Ethernet or better for 1000BASE-T |
LEDs | System, Link/Act, Speed |
Flash | 16 MB |
CPU | 128 MB memory |
Packet Buffer Memory | 4 MB |
Power Supply | 100V-240V, 1.0-0.5A, 50-60 HZ |
MTBF | @ 40°C (hours): 68,033 |
Certifications | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
MINIMUM REQUIREMENTS | Web Browser: Mozilla Firefox version 2.5 or later; Microsoft Internet Explorer version 6 or later |
Category 5 Ethernet network cable | |
TCP/IP, network adapter and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed on each computer in the network | |
Dimensions (DxWxH) | 7.99 x 17.35 x 1.74' (202.82 x 440.6 x 44.19 mm) |
Weight | 4.43 lb (2.01 kg) |
- Bảo hành: 12 tháng.
