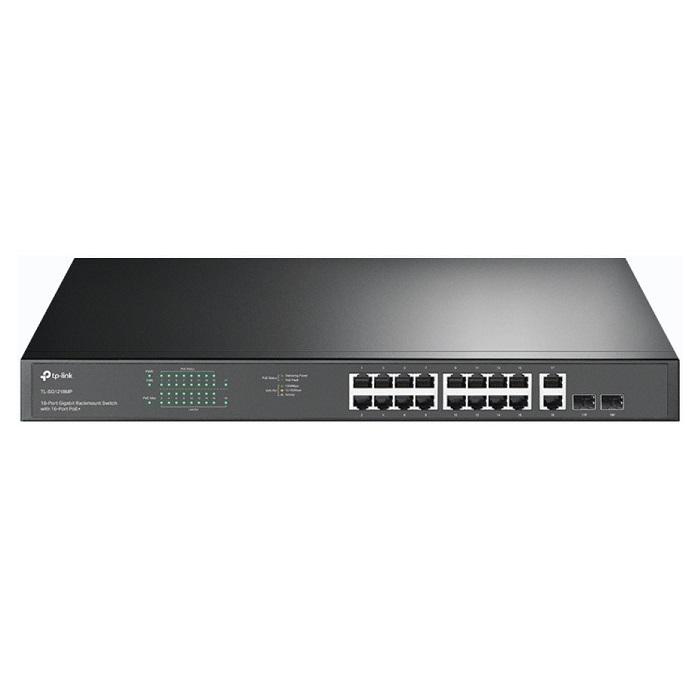

18-Port Gigabit with 16 PoE+ Rackmount PoE Switch TP-LINK TL-SG1218MP
- 16× gigabit PoE+ RJ45 ports, 2× gigabit non-PoE RJ45 ports, and 2× combo gigabit SFP slots
- High PoE power budget with up to 30W for each PoE port and 250W for all PoE ports
- Working with IEEE 802.3af/at compliant PDs
- Plug and play, with no configuration and installation needed
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Durable metal casing and professional heat dissipation design ensure a wide operating temperature range (0–50℃)
Đặc tính kỹ thuật
| HARDWARE FEATURES | |
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p |
| Interface | 16× PoE+ gigabit RJ45 ports 2× gigabit non-PoE RJ45 ports 2× combo gigabit SFP slots |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF, SMF |
| Fan Quantity | 2 |
| Physical Security Lock | Yes |
| Power Supply | 100–240 VAC, 50/60 Hz |
| PoE+ Ports(RJ45) | Standard: 802.3at/802.3af compliant PoE Ports: Ports 1–16 PoE Power Budget: 250 W |
| Dimensions (W x D x H) | 17.3 × 7.1 × 1.73 in (440 × 180 × 44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | 21.4 W (220/50 Hz. no PD connected) 286.64 W (220/50 Hz. with 250 W PD connected) |
| Max Heat Dissipation | 72.97 BTU/h (no PD connected) 977.44 BTU/h (with 250 W PD connected) |
| PERFORMANCE | |
| Switching Capacity | 36 Gbps |
| Packet Forwarding Rate | 26.78 Mbps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1 Mbit |
| Advanced Functions | Compatible With IEEE 802.3af/at Compliant PDs 802.1p/DHCP QoS Mac Address Auto-Learning And Auto-Aging IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode |
| Jumbo Frame | 10 KB |
- Bảo hành: 36 tháng.
