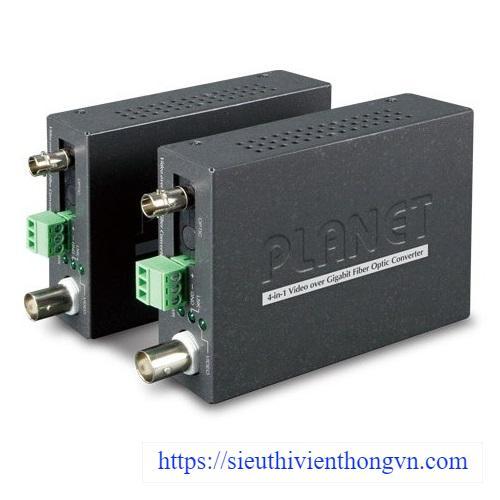

1-Channel 4-in-1 Video Fiber Converter PLANET VF-101G-KIT
- Compliant with hybrid video (AHD/TVI/CVI/CVBS)
- Long-distance data transmission of 20km
- Status indication for power supply, optical signal and video
- High-speed synchronous digital transmission technology
- Guarantees safe transmission under poor electromagnetic environment
- Video and data transmission over Gigabit fiber optic cable
- PAL, NTSC, SECAM compatible
- Data type: RS485
- 8-/10-bit digital Video Signal sampling
- Standalone or work with PLANET MC-700/1500/1500R media converter chassis
- Compact size, wall-mount design, easy installation
Đặc tính kỹ thuật
| Model | VF-101G-KIT |
| Video Characteristics | |
| Video Channel | 1 channel bi-direction |
| Signal Mode | NTSC/PAL/SECAM |
| Video Connector | BNC |
| Video Bandwidth | 60MHz |
| Video Input/Output Voltage | 1.0 Vpp/typical peak-to-peak value |
| Video Input/Output Impedance | 75ohm/unbalanced interface |
| Supported Video Type | 1080p: AHD/TVI/CVI |
| 480p: CVBS | |
| Video Digital Bit Width | 8/10 bit |
| Differential Gain (DG) | < 1.3% (typical value) |
| Differential Phase (DP) | < 1.3° (typical value) |
| SNR Weighted | > 67dB (typical value) |
| Data Interface | |
| Data Channel | 1 channel |
| Physical Protocol | RS485 |
| Operation Mode | Simplex |
| Data Connector | 3-pin terminal block with screw clamps |
| Data Rate | DC-115.2Kbps |
| Bit Error Rate (BER) | < 10ns |
| Optical Interface | |
| Optical Connector | ST |
| Distance | 20km for single mode |
| Launch Power | Max.: 0, Min.: -9 dBm |
| Receive Sensitivity | -26 dBm |
| Max. Input Power | -3 dBm |
| Cable | 9/125μm single mode cable |
| Hardware | |
| Dimensions (W x D x H) | 94 x 70 x 26 mm |
| Weight | 200g |
| Power Requirement | 5V DC, 2A |
| Power Consumption | 4.8W |
| Mechanical | Metal |
- Bảo hành: 12 tháng.
