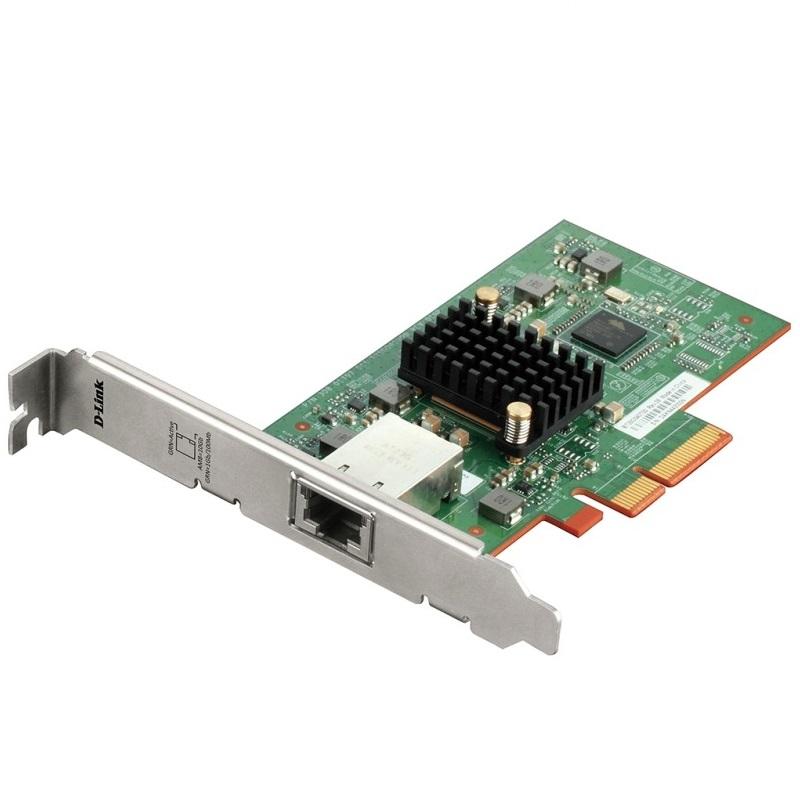

1-Port PCIe 10GBase-T Adapter D-Link DXE-810T
- The D-Link DXE-810T PCI Express 10 Gigabit Ethernet Adapter is a high performance adapter designed for the high-speed PCI Express bus architecture. The PCI Express 10 Gigabit Ethernet Adapter offers increased bandwidth, reliability, and more functionality than standard PCI network cards. It is specifically designed to allow throughput at rates up to 20 Gbps, eliminating the bottleneck that exists with current 32 and 64-bit PCI bus architectures.
Specifications
| Model | DXE-810T |
| Interface | Single Port 10GBASE-T RJ-45 |
| Standards | IEEE 802.1Q VLAN tagging IEEE 802.3x flow control PCI Express x4 2.0, 5 GT/s compliant IEEE 802.3an 10GBASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3u 100BASE-TX |
| Transmit Distance | 10GBASE-T 100M with Cat 6A or higher UTP 50M with Cat 6 UTP 100/1000BASE-T 100M with Cat 5 or higher UTP |
| Power | Maximum Power Consumption: 8.04 W Input Voltage: 3.3 V |
| Data Transfer Rate | Auto mode (support 100 Mbps) 1 Gbps 10 Gbps |
| Network Operation Mode | Full Duplex (20 Gbps) |
| Interface Slot | PCI Express x4/x8/x16 slot |
| Supported Functions | 16 KB Jumbo Frame 802.1Q VLAN tagging Simple Network Management Protocol Agent |
| Dimensions | 133.3 x 121.9 x 21.6 mm |
| Temperature | 0° to 40°C |
- Bảo hành 36 tháng.
