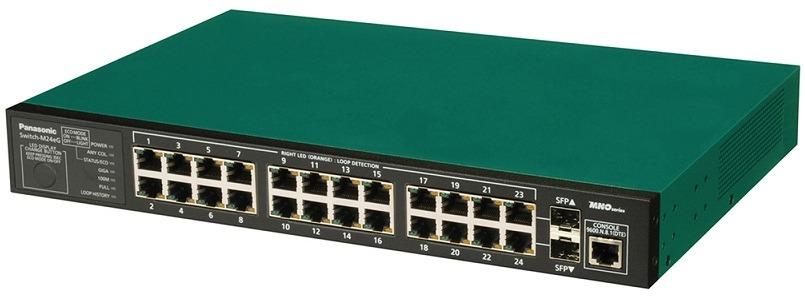

24 port 10/100/1000M PoE Switch PANASONIC PN25249
- All port Giga Layer 2 PoE powered switching hub.
- 10/100/1000Mbps x 24 ports.
- Supports PoE power supply (IEEE802.3af) (Maximum 15.4W x 24 ports/ maximum equipment power supply of 124W).
- Avoid troubles with original loop detection/ blocking/ history function, build high reliable network.
- Secure wireless LAN network which prevents information leakage by VLAN correspondence realized.
Specification
| Model | PN25249 |
| Interface | |
| Interface | 24 x 10/100/1000 Base-T |
| 24 x PoE power supply port | |
| Console port (RJ-45) | |
| Switching | |
| Switching capacity | 48 Gbps |
| Packet transfer capability | 35.7 Mpps |
| MAC address table | 8K entry/ unit |
| Buffer | 512K |
| Management | |
| Management | Japanese WEB, TELNET, Ping |
| Number of VLANs | 256 |
| Multicast function | IGMP snooping, multicast filtering function, multicast group function |
| QoS | 4 steps |
| Scheduling | Strict Priority Queuing |
| PoE function | |
| Standard | IEEE 802.3af |
| PoE power supply port | 24 |
| Maximum power supply to one port | 15.4W |
| General | |
| Power supply system | 11.3W/ 166W |
| Power supply | 100 VAC 50/60 Hz |
| Calorific value | 147.9 Kcal/h |
| Temperature | 0 ~ 45°C |
| Humidity | 10 to 90% RH (without condensation) |
| Dimensions | 44 x 440 x 256 mm |
| Weight | 3.6kg |
- Bảo hành 12 tháng.
