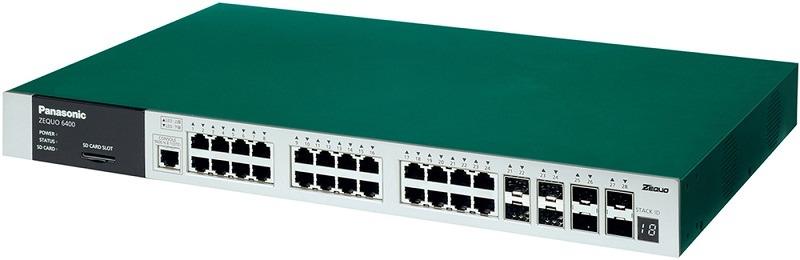

24 port 10/100/1000M Switch PANASONIC PN36240E
- All ports Giga + 10 gigabit uplink Layer 3 intelligent switching hub.
- 10/100/1000 Mbps x 24 ports + SFP x 4 slot (exclusive use with 10/100/1000T port).
- Redundant network realized by stack connection, mixed stack with optical 24 port ZEQUO 6500 (PN 36242 E) is also possible.
- Supply first-out sendback back maintenance and downtime reduction with SD card boot function.
- A secure network can be constructed that does not allow unauthorized users to be connected by the authentication function.
- Compatible with abundant routing protocols, flexible configuration of large scale network.
- UTP cable diagnostic function. Optical port status diagnosis function enables simple status check at the time of failure.
Specification
| Model | PN36240E |
| Interface | |
| Interface | 24 x 10/100/1000 Base-T |
| 4 x SFP expansion port (exclusive use with 10/100/1000 T port) | |
| Console port (RJ-45) | |
| Switching | |
| Switching capacity | 128 Gbps |
| Packet transfer capability | 95 Mpps |
| MAC address table | 32K entry/ unit |
| Buffer | 2M |
| Layer 2 Function | |
| VLAN | Tag VLAN, Port VLAN, Dynamic VLAN, MAC Address Base VLAN, Subnet Base VLAN, Asymmetric VLAN, Voice VLAN, Guest VLAN, Private VLAN |
| Number of VLANs | 4094 |
| L2 Redundancy | Spanning tree, Ring protocol, Link aggregation |
| Multicast function | IGMP snooping, IGMP querier, multicast filtering function, multicast group function |
| QoS | 8 steps |
| Scheduling | Strict Priority Queuing, Weighted Round Robin |
| Layer 3 Function | |
| IPv4 Routing | Static, RIPv 1/ v2, OSPF v2, policy-based routing |
| IPv6 routing | Static, OSPF v3 |
| Routing table | Static: 256 (IPv4), 128 (IPv6)/ Dynamic: 12K (IPv4), 6K (IPv6) |
| General | |
| Power supply system | 29W/ 51W |
| Power supply | 100 VAC 50/60 Hz |
| Calorific value | 43.9 Kcal/h |
| Temperature | 0 ~ 40°C |
| Humidity | 20 to 80% RH (without condensation) |
| Dimensions | 44 x 440 x 312 mm |
| Weight | 4.2kg |
- Bảo hành 12 tháng.
