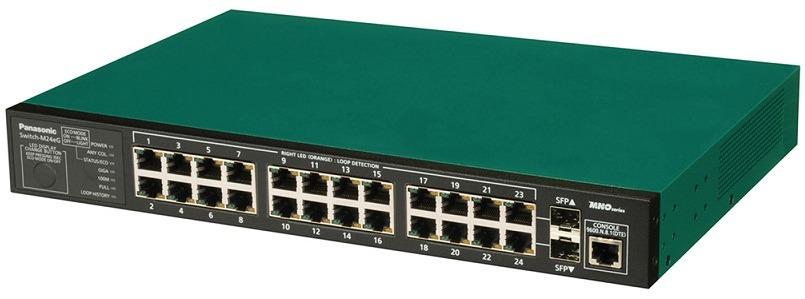

24-port 10/100/1000M Switch PANASONIC PN28240K
- All Ports Giga Layer 2 Intelligent Switching Hub.
- 10/100/1000 Mbps x 24 ports + SFP x 2 slot (exclusive use with 10/100/1000T port).
- Avoid troubles with original loop detection/ blocking/ history function, realize high reliability network.
- 50°C compatible, fanless, compact housing, excellent placeability no matter where you choose.
- The optical port status diagnostic function allows confirmation of simple light condition when a failure occurs.
Specification
| Model | PN28240K |
| Interface | |
| Interface | 24 x 10/100/1000 Base-T |
| 2 x SFP expansion port (Exclusive use with 10/100/1000 T port) | |
| Console port (RJ 45) | |
| Switching | |
| Switching capacity | 48 Gbps |
| Packet transfer capability | 35.7 Mpps |
| MAC address table | 8K entry/ unit |
| Buffer | 512K |
| Layer 2 Functions | |
| VLAN | Tag VLAN, Port VLAN, Dynamic VLAN, Guest VLAN |
| Number of VLANs | 256 |
| L2 Redundancy | Link aggregation (Up to 8 groups max. 8 ports) |
| Multicast function | Multicast group function |
| QoS | 4 steps |
| Scheduling | Strict Priority Queuing |
| Authentication | IEEE 802.1x (Port base, MAC base) |
| General | |
| Power supply system | 5.6W/ 14.8 W |
| Power supply | 100 VAC 50/60 Hz |
| Calorific value | 12.7 Kcal/h |
| Temperature | 0 ~ 50°C |
| Humidity | 20 to 80% RH (without condensation) |
| Dimensions | 44 x 330 x 230 mm |
| Weight | 2.3kg |
- Bảo hành: 12 tháng.
