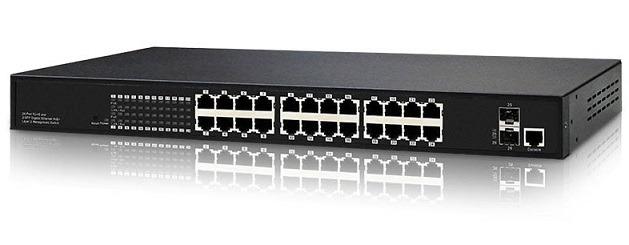

24-Port 10/100Mbps PoE Switch INONET IGS-2624W (500Watt)
– Bao gồm 24-Port PoE, công suất 500 Watt
– 24 ports Gigabit 10/100/1000Mbps Switch with 2 combo Gigabit UTP/SFP switch
– 24 ports IEEE802.3af/ 802.3at (PoE+)
– Max 30 watt per port
– Web Management
– Metal case, Rackmount Design 1U
OverView
IGS-2624W (500) series is a high performance and high efficiency Gigabit Ethernet PoE Switch. It comes with 24 ports of 10/ 100/ 1000Mbps RJ-45 and 2 SFP ports. It’s fruitful of layer 2 and PoE functions are providing users an easy way of constructing a reliable and stable PoE environment to PoE/ PD devices. Four SFPs are intentionally offered for fiber uplinks either in linear and ring topology application. Transmission distance is varied by SFP transceiver's specification.
Features
– 24 ports 10/100/1000Mbps w/ 2 SFP with 24 PSE ports
– Complies with IEEE802.3 10Base-T
– Complies with IEEE802.3u 100Base-TX
– Complies with IEEE 802.3ab 1000Base-T
– Complies with IEEE 802.3z 1000Base-SX/LX
– Complies with IEEE-802.3x Flow Control
– Complies with IEEE-802.3az Green Ethernet
– Complies with IEEE-802.3af
– Complies with IEEE802.3at
– Max. 30Watt each PSE/PoE port
– Broadcast storm control
– Auto-learning networking configurations
– 8K MAC table 4M bit buffer memory
– 9.6K Jumbo frame
– LED indicators: System Power, Link/Activity and PoE/PSE
– Operating Temperature: 0°C ~ 40°C
– Storing Temperature: -20°C ~ 90°C
– Humidity: 10% ~90% RH (Non-condensing)
– Dimension (L x W x H): 440 x 220 x 44 mm ( 1U high)
– Power Consumption: 20Watt
– Maximum Supply PoE Power per device: 480Watt
– Weight: 3.5 kg
– Safety & EMI Certificates: CE & FCC
– Smart plug & play
Specification
Standards | IEEE 802.3 10BaseT |
IEEE 802.3u 100BaseTX | |
IEEE802.3ab 1000BaseT | |
IEEE 802.3z 1000Base-SX/LX | |
IEEE802.3af PoE | |
IEEE802.3at PoE+ | |
Features | Number of Ports: |
24 10/100/1000BaseT with RJ-45 Connector with 2 port SFP, 1 port RJ45 ( console 1152008 N1) | |
24 PSE ports with RJ-45 connectors | |
Data Transfer Rate | Ethernet: |
10Mbps/Half-Duplex | |
20Mbps/Full-Duplex | |
Fast Ethernet: | |
100Mbps/Half-Duplex | |
200Mbps/Full-Duplex | |
Gigabit: | |
1000Mbps/ Half-Duplex | |
2000Mbps/Full-Duplex | |
Transmission Media | 10BaseT Cat. 3, 4, 5 UTP/STP, up to 100 m |
100BaseTX Cat. 5 UTP/STP, up to 100 m | |
1000Base T cat 5,6 UTP, up to 100m | |
Led Indicators | Per Port: |
(TX): 10/100M Link/Act, PoE | |
Per Unit: Power | |
Maximum Supply PoE per Device | 480 Watt (as table 1) |
Power Consumption | 20 Watt |
Dimensions | 440 x 220 x 44 mm (L x W x H) |
Weight | 3.5 kg |
Operating Temperature | 0 to 40°C |
Storage Temperature | -20 to 90°C |
Humidity | 10 to 90% RH (non-condensing) |
Certifications | FCC Class A, CE |
– Sản xuất tại Taiwan
– Bảo hành: 12 tháng
