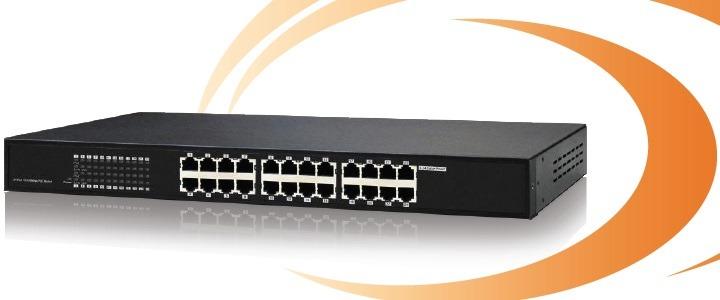

24-Port 10/100Mbps PoE Switch IONNET IFS-2424 (500Watt)
- Bao gồm 24-Port PoE, công suất 500 Watt.
- Nguồn điện: 90-260VAC.
- 24port 10/100M PoE Switch
- PoE/PoE+
- Full power 500Watt
- Support Max. PoE power 30watt per port
OverView
- IFS-2424 series are 24 10/100M port Power over Ethernet which consists of 24 PSE/PoE ports. The models compliant to POE IEEE 802.3af and 802.3at, it defines new green power saving idea on PSE Port. That can solve the limitation of the power outlet location and offer the system relocation easily.
Features
- 24 Port PSE/ PoE function, compliant with IEEE-802.3af class3 /class 2 / class 1 and IEEE802.3at
- Supporting the power up 30Watt for each PSE/PoE port
- Providing 24 10/100Mbps switching ports and 2* combo gigabit UPT/SFP open slot
- Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T,
- Comply with IEEE802.3af and 802.3at
- Comply with IEEE 802.3x Flow control; back pressure for Half-duplex and for Full-duplex mode
- All ports support Auto-MDIX function
- Being dedicated 200Mbps Full-duplex bandwidth to the each port
- Broadcast storm control and supporting store & forward operation
- Non-blocking & Non-head-of-line blocking full-wire speed forwarding
- Auto-learning networking configurations
- Built-in 4K MAC learning table, 2.75M bits buffer memory
- Support packet length up to 1536Bytes
- Filtering/Forwarding Rate: 1000Mbps/1,488,000pps; 100Mbps/148,800pps; 10Mbps/14,880pps
- Status LEDs: System Power, Link/Activity, and PoE/PSE on line
- Network Transmission Media: 10Base-T Cat. 3, 4, 5 UTP/STP; 100Base-TX Cat. 5 UTP/STP; 1000BASE-T Cat. 5E UTP/STP.
- Internal Power supply: AC input (90~260V/AC, 50~60Hz) UL Safety
- Operating Temperature: 0℃ ~ 40℃
- Storing Temperature: -20℃ ~ 90℃
- Humidity: 10% ~90% RH (Non-condensing)
- Dimension (L x W x H): 440mmX325mmx44mm (1U high)
- Power supply : 500Watt
- Weight: 5Kg
- Safety & EMI Certificates: CE & FCC
- Smart plug & play
Specification
Standards | IEEE 802.3 10BaseT |
Features | Number of Ports: |
Data Transfer Rate | Ethernet: |
Transmission Media | 10BaseT Cat. 3, 4, 5 UTP/STP, up to 100 m |
Led Indicators | Per Port: |
Power Requirement | AC input (90~260V/AC, 50~60Hz) UL Safety |
Power supply | 500Watt |
Dimensions | 440 x 325 x 44 mm (L x W x H) |
Weight | 5kg |
Operating Temperature | 0 to 40℃ |
Storage Temperature | -20 to 90℃ |
Humidity | 10 to 90% RH (non-condensing) |
Certifications | FCC , CE |
- Sản xuất tại Taiwan.
- Bảo hành: 12 tháng.
