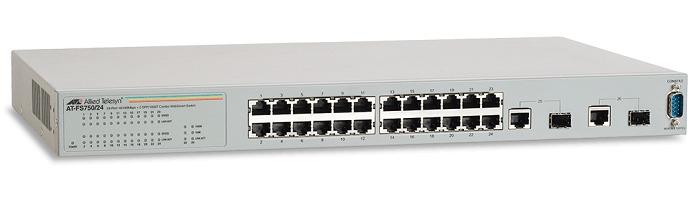

24-port 10/100TX Fast Ethernet WebSmart Switch AT-FS750/24
- 24 port 10/100TX + 2 SFP combo ports.
- Firmware upgrade by TFTP and Web.
- Factory reset.
- Password access control and restricted IP access list.
- SNMPv1/v2c.
Đặc tính kỹ thuật
| Performance | |
| Port | 24 port 10/100TX + 2 SFP combo ports |
| MAC addresses | 8K |
| VLAN IDs available | 4K |
| Max VLANs | 200 tagged + 56 port-based |
| Flash | 4 MB |
| SDRAM | 16 MB |
| Switch memory | 2 MB embedded |
| Packet buffer | 256KB |
| Switch capacity | 8.8 Gbps |
| Throughput | 6.6 Mpps |
| Standards and Compliance | |
| IEEE 802.3 | CSMA/CD |
| IEEE 802.3i | 10T |
| IEEE 802.3u | 100TX |
| IEEE 802.3z | 1000SX/LX |
| IEEE 802.3z/ab | 1000T |
| IEEE 802.3x | Flow control |
| IEEE 802.1p | Prioritization (four queues) |
| IEEE 802.1x | Authentication |
| IEEE 802.1d | Bridging |
| IEEE 802.3ad | Link aggregation |
| IEEE 802.1Q | Tagged VLAN |
| IEEE 802.1d | Spanning-Tree |
| IEEE 802.1w | Rapid Spanning-Tree |
| Interface connections | |
| 10/100TX, 1000T | RJ-45 |
| SFP | 100FX, 10/100/1000T, 1000SX/1000LX |
| Power characteristics | |
| Voltage | 100-240 VAC |
| Frequency | 50-60 Hz |
| Environmental Specifications | |
| Operating temperature | 0 to 45ºC |
| Non-operating temp | -20 to 70ºC |
| Operating humidity | 5-90% non-condensing |
| Storage humidity | 5-95% non-condensing |
| Vibration | IEC 68-2-36 |
| Shock | IEC 68-2-29 |
| Drop | IEC 68-2-32 |
| Physical Characteristics | |
| Dimensions | 440 x 257 x 432 mm |
| Weight | 3.24 kg |
- Bảo hành: 12 tháng.
