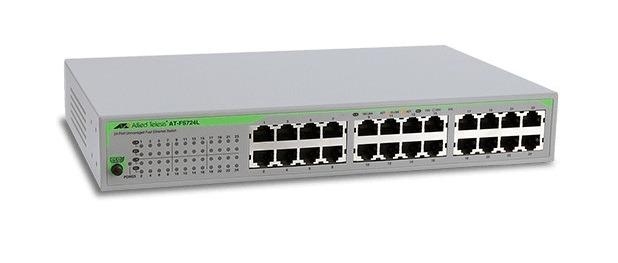

24-port 10/100TX Unmanaged Fast Ethernet Switch ALLIED TELESIS AT-FS724L
- 24 ports 10/100TX.
- Wirespeed technology.
- Non-blocking architecture.
- Auto-negotiation ports.
- Auto MDI/MDI-X ports.
- Transparent to VLAN packets.
- Half-duplex and full-duplex flow control.
- External power supply.
- Sturdy metal case.
Đặc tính kỹ thuật
| Performance | |
| Ethernet | 14,800pps for 10Mbps Ethernet |
| Fast Ethernet | 148,000pps for 100Mbps Fast Ethernet |
| MAC addresses | 8K |
| Packet buffer | 160K |
| Throughput | 3.57 Mpps |
| Switching capacity | 4.8 Gbps |
| Support | Half/full-duplex, Auto-negotiation, Auto MDI/MDI-X on all ports |
| Interface Connections | 10/100TX, RJ-45 |
| Standards and Compliance | |
| IEEE 802.3 | 10T Ethernet |
| IEEE 802.3u | 100TX Fast Ethernet |
| IEEE 802.3x | Flow control |
| Power Characteristics | |
| Frequency | 50 to 60 Hz |
| Voltage | 100-240VAC |
| Max power consumption | 6.72 W |
| Environmental Specifications | |
| Operating temp | 0 to 40ºC |
| Non-operating temp | -25 to 70ºC |
| Operating humidity | 5-80% non-condensing |
| Non-operating humidity | 5-95% non-condensing |
| Physical Characteristics | |
| Dimensions | 280 x 180 x 44 mm |
| Weight | 1.59 kg |
- Bảo hành: 12 tháng.
