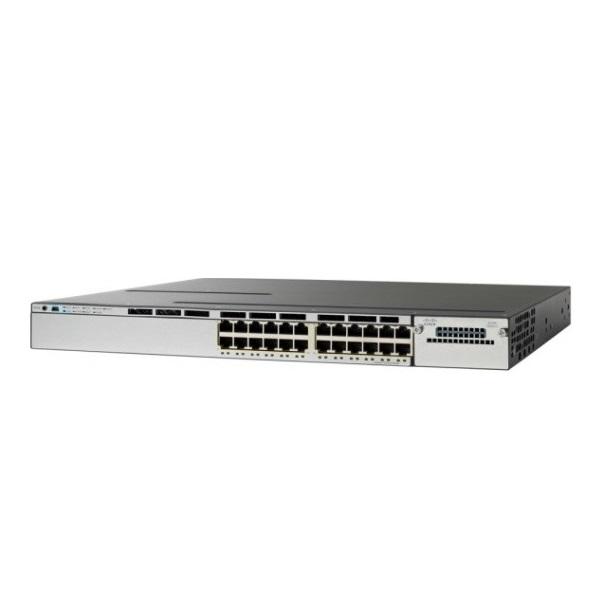

24-Port Ethernet POE Switch Cisco Catalyst WS-C3850-24PW-S
- Cisco Catalyst 3850 24 Port PoE with 5 AP license IP Base.
- Cisco next generation Catalyst WS-C3850-24PW-S is integrated with 24 Ethernet POE ports stackable enterprise level switch with IP base IOS image which delivers full layer 2 and limited layer 3 capabilities in order to offer the feasible solution for distribution layer.
Specification
Model info | WS-C3850-24PW-S |
Enclosure type | Rack-mountable - 1U |
Ports | 24 x 10/100/1000 (POE+) |
Network management Interface | Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling nagement console port: RJ-45-to-DB9 cable for PC connections |
Available PoE Power | 435W |
Switching Capacity | 92Gbps |
Maximum stacking number | up to 9 switches with same IOS feature set in same series |
Stack Bandwidth | 480Gbps |
Forwarding Performance | 68.4Mpps |
FNF entries | 24,000 flows |
Maximum VLANs IDs | 1000 |
MAC Address Table Size | 32K |
CPU | Multicore CPU |
RAM | 4G |
Flash Memory | 2G |
Number of AP per switch/stack | 100 |
Number of wireless clients per switch/stack | 2000 |
Total number of WLANs per switch | 64 |
Wireless bandwidth per switch | up to 20Gbps |
Supported Aironet AP series | 3600, 3500, 2600, 1600, 1260, 1140, 1040 |
Console ports | USB (Type-B), Ethernet (RJ-45) |
Expansion Slot(s) | 1 network module slot and 1 power redundant slot |
Dimension (WxDxH) | 44.5x44.5x4.45cm |
Weight | 7.4 kg |
- Bảo hành: 12 tháng.
