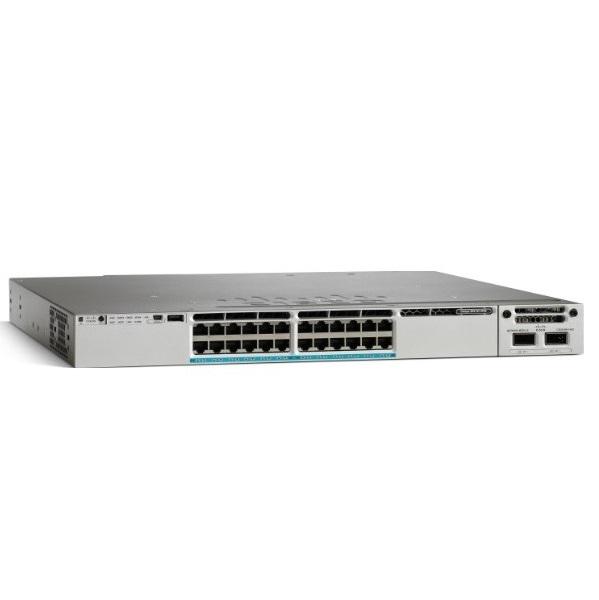

24-Port Ethernet UPOE Switch Cisco Catalyst WS-C3850-24U-E
- Cisco Catalyst 3850 24 Port UPOE IP Services.
- Cisco WS-C3850-24U-E supports Stackable 24 10/100/1000 Cisco UPOE ports, 1 network module slot, 1100W power supply and 1RU chassis.
- Cisco Catalyst 3850 Series provides capabilities that ideally suited to support the convergence of wired and wireless access. The new Cisco Unified Access Data™ Plane (UADP) Application-Specific Integrated Circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility, and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise®-480 technology.
Specification
| Model info | WS-C3850-24U-E |
| Enclosure type | Rack-mountable - 1U |
| Ports | Stackable 24 10/100/1000 Cisco UPOE ports |
| Network management Interface | Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling Management console port: RJ-45-to-DB9 cable for PC connections |
| Available PoE Power | 800W |
| Switching Capacity | 176Gbps |
| Maximum stacking number | up to 9 switches with same IOS feature set in same series |
| Stack Bandwidth | 480Gbps |
| CPU | Multicore CPU |
| RAM | 4G |
| Flash Memory | 2G |
| Number of AP per switch/stack | 100 |
| Number of wireless clients per switch/stack | 2000 |
| Total number of WLANs per switch | 64 |
| Wireless bandwidth per switch | up to 20Gbps |
| Supported Aironet AP series | 3600, 3500, 2600, 1600, 1260, 1140, 1040 |
| Console ports | USB (Type-B), Ethernet (RJ-45) |
| Expansion Slot(s) | 1 network module slot and 1 power redundant slot |
| Dimension (HxWxH) | 4.45x44.5x48.8cm |
- Bảo hành: 12 tháng.
