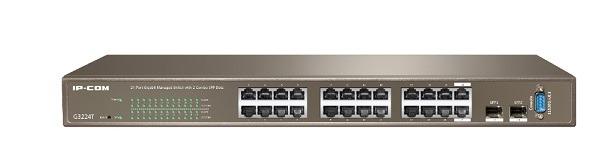

24-Port Gigabit + 2 combo SFP Slots Managed Switch IP-COM G3224T
- Hỗ trợ 24x10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) và 2x1000Mbps SFP.
- Công suất chuyển đổi: 56Gbps.
- Tốc độ chuyển tiếp gói tin: 35.7Mbps.
- Compliant with IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab.
- Store & forward, share memory, non-blocking architecture.
- Supports MAC address self-learning and auto MDI/MDIX.
- Supports full-deplux 802.3x flow control and half-duplux backpressure flow control.
- Supports 8K MAC address list, MAC address learning and auto-ageing.
- Supports Power Inductive Lightning Protection up to 6KV.
- Supports jumbo frame forwarding.
- Supports formation of broadcast storm.
- Supports QoS and DSCP, Cos(802.1P) priority, each port provides 4 priorities for forwarding queue.
- Supports 802.1Q VLAN and maximum groups of QVLAN up to 200.
- Supports IGMP snooping function.
- Supports 802.1x authentication based on port.
- Supports STP, RSTP, IGMP Snooping V1&V2, full-deplux 802.3x flow control and half-duplux backpressure flow control.
- Supports spanning tree protocol(STP), including 802.1d(Spanning Tree) and 802.1w (Rapid Spanning Tree) protocol.
- Supports Link Aggregation, including static Link Aggregation and LACP, support 6 Trunk groups and 8 aggregate ports per group.
- Supports defending from ARP attacks, worm-virus attacks, Dos attacks, MAC-address attacks Support quaternary-smart-binding, searching mainframe for smart binding.
- Supports smart configuration for network bar and enterprise.
- Built-in switching power adapter, support AC 110-240V 50/60Hz input.
- Standard 19-inch rack-mountable, 1U steel case.
- Supports firmware upgrading ways of TFTP in CLI and HTTP in Web.
- Supports Telnet, CLI, Web and SNMP, system log, TFTP&HTTP for upgrading firmware.
- Nguồn điện: AC 100-240V 50/60Hz.
Đặc tính kỹ thuật
| Hardware Features | |
| Standards&Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1Q, IEEE 802.1p |
| Interface | 24x10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 2x1000Mbps SFP |
| Transfer Method | Store-and-Forward |
| Switching Capacity | 56Gbps |
| Packet Forwarding Rate | 35.7Mpps |
| Address Table | 8K |
| Power Consumption | <20W |
| Power input | 100-240VAC, 50/60Hz |
| Dimension (L×W×H) | 440mm x 284mm x 44mm |
| Fan Quantity | Fanless |
| Environment | Operating Temperature: 0℃～40℃ Storage Temperature: -40℃～70℃ Operating Humidity: 10%～90% non-condensing Storage Humidity: 5%～90% non-condensing |
| Software Features | |
| Port Feature | IEEE802.3x flow control (full duplex) Storm control based on port rate percentage PPS based storm control |
| QoS | Supports Port/Flow- based Rate Limiting Packet re-direction Committed Access Rate (CAR) Supports 8 priority queues Supports Queue scheduling: SP, WRR Supports 802.1p CoS/DSCP priority |
| Link Aggregation | LACP Up to6 aggregation groups, containing 8 ports per group |
| Loop back | Supports Spanning Tree STP/RSTP |
| VLAN | Port based VLAN Protocol based VLAN |
| Multicast | Supports IGMP V1/V2 |
| Mirroring | Port mirroring |
| Security Feature | User level management and password protection 802.1X authentication centralized MAC address authentication ARP Detection |
| Management | Configuration via CLI, Telnet, and Console port SNMPv1/v2/v3 Web-based GUI management Support system log Ping, Tracert |
- Bảo hành: 24 tháng.
