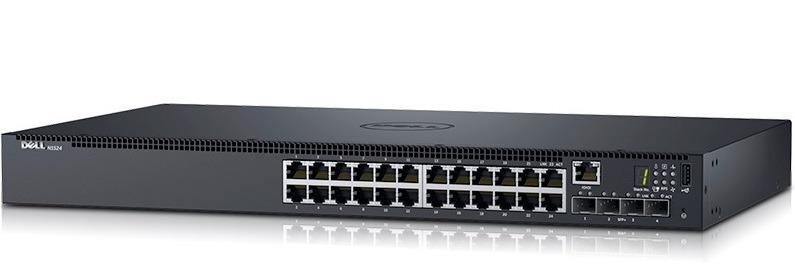

24-port Gigabit Managed Switch DELL N1524
Product Code: 210-AEVX
- 24 RJ45 10/100/1000Mbps auto-sensing ports
- (4) Four integrated 10GbE SFP+ ports
- (1) One integrated power supply (40W AC)
Đặc tính kỹ thuật
| Model | N1524 |
| Ports | 24 x 10/100/1000 + 4 x 10 Gigabit SFP+ |
| Performance | Switching fabric bandwidth: 128 Gbps Forwarding performance: 128 Mpps |
| MAC Address Table Size | 16000 entries |
| Capacity | Virtual interfaces (VLANs): 512 ARP entries: 1024 NDP entries: 400 Priority queues per port: 8 IPv4 routes (static): 256 IPv6 routes (static): 128 IPv4 routes (dynamic): 256 VLAN routing interfaces: 128 ACL: 100 |
| Routing Protocol | RIP-1, RIP-2, static IPv4 routing, static IPv6 routing |
| Remote Management Protocol | Telnet, TFTP |
| Encryption Algorithm | MD5, AES, SSL, TLS |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| Features | Auto-negotiation, auto-uplink (auto MDI/MDI-X), port mirroring, Broadcast Storm Control, front to back airflow, redundant fans |
| RAM | 1GB |
| Flash Memory | 256MB |
| Interfaces | 24 x Gigabit LAN RJ-45 4 x 10Gbit LAN SFP+ 1 x serial (RS-232) RJ-45 management 1 x USB Type A 2 x network stack device |
| Power Device | Internal power supply |
| Power Provided | 40W |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 30.2W |
| Dimensions | 44 x 25.7 x 4.32 cm (WxDxH) |
| Weight | 3kg |
- Bảo hành: 03 năm.
